A2 series Exchange platform laser cutting machine
- Fast pallet changer, more efficient
- Environmental protection
- Stability, good rigidity, high speed

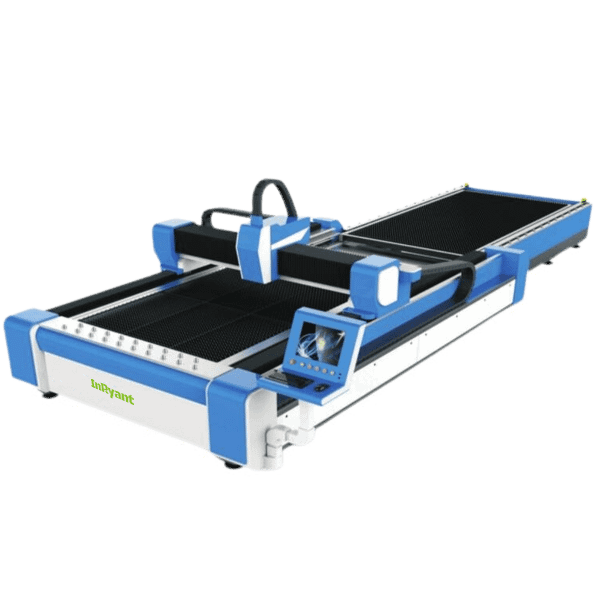

A2 series 2 platform laser cutting machine is an exchange platform laser cutter.
The cutting thickness is related to the laser power.
Cutting width: 1.5-2.5m
Cutting length: 3.0-6.0m
Exchange Platform Fiber Laser Cutting Machine Mechanical Parts
|Laser Bed: ductile iron casting structures have high rigidity, good vibration damping,non-deformation, high accuracy and good stability|
|Laser Cutting Machine Beam: cast aluminum alloy, light load, ensure acceleration|
|Laser Cutter Machine Guide rail: H-class linear guide, high precision, fast speed|
|Laser Cutting Machine Frame: precision gear rack, fast speed|
Exchange Platform Fiber Laser Cutting Machine Parameter
|Maximum sheet size||3000x1500mm/4000 x2000mm/6000 x2000mm/or customized size|
|Laser type||Fiber laser generator|
|Transmission system||Gantry double-drive structure|
|Graphic format supported||CAD. DXF (etc)|
|Working environment||Temp:0-40℃, humidity:≤80%|
|Power supply||3 PHASE 380V/50Hz or 60Hz|
|Application material||MS/SS/Aluminum/Copper Metal Sheet|

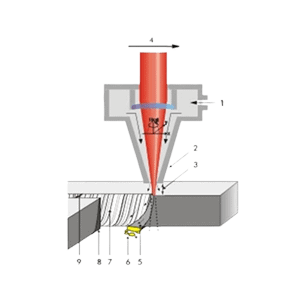

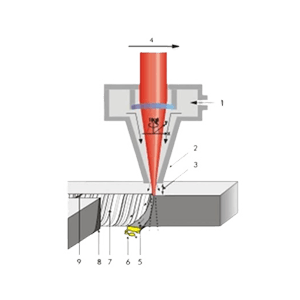

Fiber Laser Cutting Machine Working Principle
1. Moving Direction
2. Auxiliary Gas
4. Nozzle Distance
5. Molten Material
7. Cutting Section
8. Heat Affected Zone
The Main Parts of Fiber Laser Cutting Machine
Raytools Laser Cutting Head
The Raytools laser cutting head from Switzerland has an automatic sensor function, which is suitable for different focal lengths and is controlled by the system. For plates of different thicknesses, the focus will be automatically adjusted during the cutting process to achieve the best cutting effect.
Raycus Laser Power Source
InRyant Laser cooperation with Raycus, IPG, MAX and nLIGHT with strict quality testing of every fiber source. Double strict selection is trustworthy.
Bochu CypCut Controller
CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.
Gear Rack & Linear Guide
The laser head is moved along the HIWIN linear guides (Taiwan) and YYC gear rack. The moving speed of the X and Y axis can max 120m/min which is very helpful to improve the production efficiency.
Yaskawa servo motors and drives
The maximum speed increased a lot due to the excellent servo motor and drive
Japan SHIMPO Reducer
Special reducer for laser cutting machine with high precision,super quet, long-life no oil leakage, high torque and other excellent features
S&A Water Cooling System
The water cooling system takes away the heat generated during the operation of the machine and protects the fiber laser metal cutting machine from damage.
Japan SMC automatic gas selection system
Controlling Oxygen gas is from SMC with pressure ranges from 0-1 Mpa which helps to cut thick carbon steel
Franch Schneider Electric Components
Over voltage resistance, high performance limitation to fast closing independent of the speed of actuation of the toggle.
We can set the adding oil’s frequency and quantity by Automatic Lubrication System on the computer, so it largely improves the machine’s lifetime, saves manpower.
It adopts a parallel switching platform and bilateral drive matching sprocket chain.
Japan NSK Bearings
These bearing seats have square flanges and can be easily connected to the machine with four bolts.
Due to the simple mounting surface, the bearing unit is widely used.
Raycus Fiber Laser Cutter Machine Cutting thickness and speed
|Maximum Cutting Speed (m/min.)|
|Mild Steel (O2)||0.8||18||N2|
|Stainless Steel (N2)||0.5|
Cutting Sample of Fiber Laser Cutter Machine
|mild carbon steel||mild carbon steel||mild carbon steel||mild carbon steel||mild carbon steel|
|3mm thick cut||8mm thick cut||12mm thick cut||16mm thick cut||25mm thick cut|
|Carbon cut||Aluminum Cutting||Carbon cut||Copper cutting||stainless steel cutting|
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc. ensure that it can operate possibly during the laser cutting process.
Machine Body testing is important for checking the quality of a laser machine, especially motion parts installation, which ensure running and cutting accuracy, here we introduce to you how we Test our laser machine
1. Linear guide parallelism examination, our requirement ≤±0.02mm
2. Rack installation, accuracy lower than ≤±0.02mm
3. Guide gap detection, our requirements, our requirement≤±0.03mm
Packaging and shipment
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging the machine: Avoid all damage that may occur during the delivery. Then we will cover the machine with plastic film tightly to avoid water and rust. The outermost is a wooden box with a fixed template.
Q: There are so many machine types, which one should I choose?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) . What work table size you will need? 2). What work you will do?
Q: This is my first time buying your machine; I have no ideas about your fiber laser cutting machine’s quality?
A: Each machine is strictly produced based on standard certifications. We are confident to tell customers that there is no need to worry about our quality. Welcome you visit our factory anytime
Q: When I got this machine, but I don’t know how to use it. What should I do?
A: There are video and English manuals with the machine. If you still have any doubts, we can talk by telephone. we supply 24 hours online service.
Q: If some problems happen to this machine during the warranty period, what should I do?
A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service.
Q: Machine delivery time?
A: Within 20-30 working days after get your payment.
