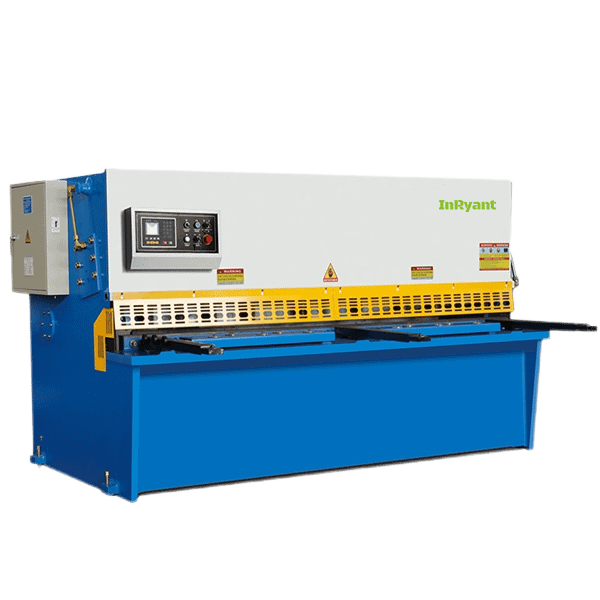

HSB Series Heavy Duty Hydraulic NC Swing Beam Shear
- Single point blade clearance
- Swing up or away back gauge
- Finger guard, ball transfers and hold downs
HSB hydraulic swing beam shearing machine combines performance and simplicity. The hydraulic shears for sale are engineered to have the most optimized cutting angle which provides the least distortion when cutting the widest variety of materials. The low cutting angle on this type of shears allows limiting sheet metal twists and bows.
Cutting Capacity: 0.5mm – 12mm
Cutting Width:1600mm – 4000mm
HSB Serie Hydraulic CNC Swing Beam Shear Features
- CNC Controller for back gauge position.
- Alloy steel cutting blades. Bottom: 4, Top: 2 cutting sides.
- Easy adjustable blade gap adjustment system from a single point.
- Bosch – Rexroth hydraulic system.
- High pressurized silent sunny pump.
- Fast and powerful back gauge with 750mm distance, moving by ball screwed shafts.
- Powerful hydraulic material hold-downs.
- Cutting length adjustment allowing stroke adjustment for shorter sheets and shorten the cutting time.
- Support table with roller bearings.
- Front support arms with the ruler.
- Foot pedal available for single or continuous cutting.
- Cutting line illumination.
Standard Configuration of Hydraulic NC Swing Beam Shearing Machine
Estun E21S Controller for Hydraulic Cutter
- HD LCD display, with both Chinese and English language options, display programming parameters, faster and more convenient programming
- Backgauge Control： Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
- Cut Stroke: Built-shearing time relay, simple operation, cost savings
- Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons
- Blade gap: encoder feedback, time display blade gap size, simple operation
- Having a key parameter backup and restore functionality, you can always restore the parameters as required, reducing maintenance costs
- All keys on the panel are micro-switches, through EMC, high temperature, vibration, and another rigorous testing to ensure product stability and service life.
- CE certified to meet the needs of overseas markets.
Siemens Motor
From the German brand Siemens motors improve the life of the sheet metal bending machine, and the press brake machine operates in a low noise environment.
Sunny Pump
The oil pump adopts a (USA SUNNY) gear pump, which can withstand high pressure and low noise.
Hydraulic Oil Cylinder
lt is recommended to use antiwear hydraulic oil ISO VG46#(the average value of viscosity is 46mm2/s).
Hydraulic Valve Bank
Hydraulic system (Bosch Rexroth) slider can achieve rapid decline, slow down the speed of bending work, and quick return upward, downward and the like during the operation stop of the slider.
Powerful hydraulic material hold-downs
Built-in spring pressure cylinder, the lower end is equipped with a special material gasket to control the pressure separately to avoid embossing aluminum alloy or other soft materials.
Alloy steel cutting blades
The blades of the shearing machine are made from Alloy material(42CrMo), and the hardness can reach 42 degrees to ensure the service life of the toolings.
Press Brake Electrical System
The power supply of the CNC bending machine adopts a three-phase AC 50HZ380V power supply. After the AC voltage is output from the internal transformer of the system, it can be directly used for the operation of the main motor, and can also be used for the rear gear servo and equipment lighting. The other group forms two groups of DC 24V after rectification, one group is used by CNC controller, and the other group is used by control loop.
Grating scale close-looped device
Imported internationally renowned flat brand electro-hydraulic servo valve and grating ruler constitute a closed-loop control mode
Front support arms
The front arms with a ruler can ensure cutting accuracy and easy operation. Practical and effective.
Support table
Support table with roller bearings can reduce friction, protect the workpiece surface; the delicate design is convenient for cutting petty materials by hand.
Ball Screw and linear guide
The backgauge is positioned by a precision ball screw and supported by a high-precision linear guide
Hydraulic shear oil Seal Ring
The sealing ring is selected from NOK or the same level, which has good sealing performance, reliable work and long life.
Optional Configuration of Hydraulic Swing Beam Shearing Machine
- Delem DAC 310s controller.
- Delem DAC 360s controller with powered blade gap adjustment.
- Front light finger guard system
- Pneumatic sheet supports
- Electrical blade gap adjustment with Estun E21.
- Longer Squaring arm and support arms.
- 1000mm back gauge
Hydraulic Shearing Machine Technical Specification
| Type | Max cutting Thickness(mm) | Cutting Length(mm) | Throat Depth(mm) | Shearing Angle | Shearing Speed (times/min.) | Backgauge(mm) | Motor Power(kw) | L*W*H(mm) | Weight (kgs) |
| 4×2500 | 4 | 2500 | 100 | 1°30’ | 10~12 | 500 | 5.5 | 3040*1610*1620 | 3100 |
| 4×3200 | 4 | 3200 | 100 | 1°30’ | 10~12 | 500 | 5.5 | 3840*1610*1620 | 4300 |
| 4×4000 | 4 | 4000 | 100 | 1°30’ | 8~10 | 500 | 5.5 | 4600*1700*1700 | 6000 |
| 4×6000 | 4 | 6000 | 100 | 1°30’ | 5~7 | 500 | 11 | 6460*2100*3200 | 13000 |
| 6×2500 | 6 | 2500 | 145 | 1°30’ | 10~12 | 500 | 7.5 | 3040*1610*1620 | 4000 |
| 6×3200 | 6 | 3200 | 145 | 1°30’ | 9~11 | 500 | 7.5 | 3840*1610*1620 | 5000 |
| 6×4000 | 6 | 4000 | 145 | 1°30’ | 8~10 | 500 | 7.5 | 4620*1750*1700 | 7500 |
| 6×6000 | 6 | 6000 | 145 | 1°30’ | 5~7 | 500 | 11 | 6480*2100*2300 | 15000 |
| 8×2500 | 8 | 2500 | 300 | 1°30’ | 10~12 | 500 | 7.5 | 3040*1700*1700 | 5000 |
| 8×3200 | 8 | 3200 | 300 | 1°30’ | 8~10 | 500 | 7.5 | 3860*1700*1700 | 6000 |
| 8×4000 | 8 | 4000 | 300 | 1°30’ | 8~10 | 500 | 7.5 | 4640*1700*1700 | 8000 |
| 8×6000 | 8 | 6000 | 300 | 1°30’ | 8~10 | 500 | 11 | 6480*2100*2350 | 19000 |
| 10×2500 | 10 | 2500 | 300 | 1°30’ | 9~11 | 500 | 11 | 3040*1700*1700 | 6000 |
| 10×3200 | 10 | 3200 | 300 | 1°30’ | 9~11 | 500 | 11 | 3860*1700*1700 | 7000 |
| 10×4000 | 10 | 4000 | 300 | 1°30’ | 8~10 | 500 | 11 | 4650*2100*2000 | 9000 |
| 10×6000 | 10 | 6000 | 300 | 2° | 5~7 | 500 | 15 | 6500*2100*2300 | 23000 |
| 12×2500 | 12 | 2500 | 300 | 2° | 9~11 | 500 | 18.5 | 3140*2150*2000 | 7800 |
| 12×3200 | 12 | 3200 | 300 | 2° | 9~11 | 500 | 18.5 | 3880*2150*2000 | 9000 |
| 12×4000 | 12 | 4000 | 300 | 2° | 8~10 | 500 | 18.5 | 4680*2150*2000 | 11000 |
