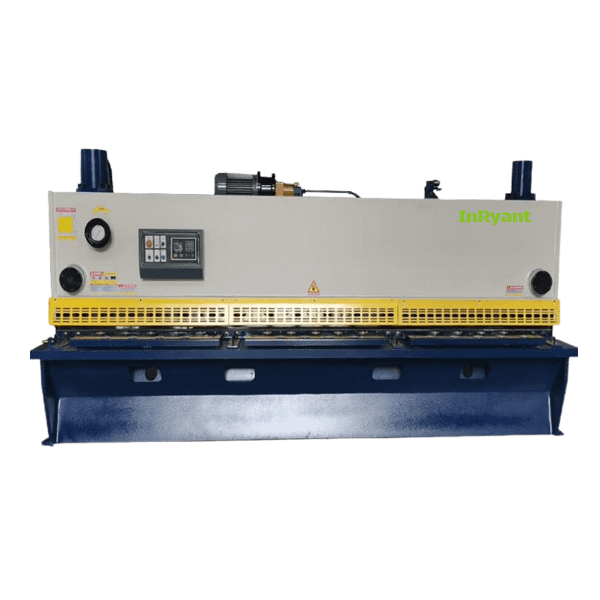

HVS Series CNC Hydraulic Various Angle CNC Guillotine Shear

  • Three-point support rolling guide (Lower eccentric shaft, front support shaft, upper eccentric shaft)
  • Adjustable cutting angle, different cutting angles are applied for cutting plates with different thicknesses
  • Suitable for cutting thicker plates with better cutting quality

HVS Series CNC Hydraulic Various Angle CNC Guillotine Shear is the second generation hydraulic guillotine plate shears.
Cutting Capacity: 0.5mm – 30mm
Cutting Width:1600mm – 9000mm

Get Quote
HVS Series CNC Hydraulic Guillotine Shear Features
  • Variable rake design
  • Estun E21S CNC controlling blade gap, back gauge
  • High quality Alloy steel top and bottom blades
  • Top blade with 4 cutting edges and bottom blade with 4 cutting edges
  • Cutting line illumination
  • Front finger guards with windows
  • Side throat guards
  • Compact low-maintenance hydraulic system
  • Hydraulic overload protection
  • Powerful material hold downs to prevent sheet sliding during cutting action
  • Support table with roller bearings
  • Front squaring arm with measuring scale, tee slot and flip stop
  • Front support arms
  • Foot pedal for single or continuous cutting cycles
Standard Configuration of Hydraulic CNC Guillotine Machine
Estun E21S Controller for Hydraulic Cutter
  • HD LCD display, with both Chinese and English language options, display programming parameters, faster and more convenient programming
  • Backgauge Control: Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
  • Cut Stroke: Built-shearing time relay, simple operation, cost savings
  • Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons
  • Blade gap: encoder feedback, time display blade gap size, simple operation
  • Having a key parameter backup and restore functionality, you can always restore the parameters as required, reducing maintenance costs
  • All keys on the panel are micro-switches, through EMC, high temperature, vibration, and another rigorous testing to ensure product stability and service life.
  • CE certified to meet the needs of overseas markets.
Siemens Motor

From the German brand Siemens motors improve the life of the sheet metal bending machine, and the press brake machine operates in a low noise environment.

Sunny Pump

The oil pump adopts a (USA SUNNY) gear pump, which can withstand high pressure and low noise.

Hydraulic Oil Cylinder

lt is recommended to use antiwear hydraulic oil ISO VG46#(the average value of viscosity is 46mm2/s).

Hydraulic Valve Bank

Hydraulic system (Bosch Rexroth) slider can achieve rapid decline, slow down the speed of bending work, and quick return upward, downward and the like during the operation stop of the slider.

Powerful hydraulic material hold-downs

Built-in spring pressure cylinder, the lower end is equipped with a special material gasket to control the pressure separately to avoid embossing aluminum alloy or other soft materials.

Alloy steel cutting blades

The blades of the shearing machine are made from Alloy material(42CrMo), and the hardness can reach 42 degrees to ensure the service life of the toolings.

Press Brake Electrical System

The power supply of the CNC bending machine adopts a three-phase AC 50HZ380V power supply. After the AC voltage is output from the internal transformer of the system, it can be directly used for the operation of the main motor, and can also be used for the rear gear servo and equipment lighting. The other group forms two groups of DC 24V after rectification, one group is used by CNC controller, and the other group is used by control loop.

Grating scale close-looped device

Imported internationally renowned flat brand electro-hydraulic servo valve and grating ruler constitute a closed-loop control mode

Front support arms

The front arms with a ruler can ensure cutting accuracy and easy operation. Practical and effective.

Support table

Support table with roller bearings can reduce friction, protect the workpiece surface; the delicate design is convenient for cutting petty materials by hand.

Ball Screw and linear guide

The backgauge is positioned by a precision ball screw and supported by a high-precision linear guide

Hydraulic shear oil Seal Ring

The sealing ring is selected from NOK or the same level, which has good sealing performance, reliable work and long life.

Optional Configuration of  Hydraulic guillotine Machine
  • Sheet conveyor and stacking system.
  • Pneumatic Sheet support system for thin sheets.
  • Hydraulic oil cooling and heating system.
  • Light safety system for finger protection.
  • Optional alternative colors.
  • Central lubrication system
  • Servo Motor
  • Light curtain
  • Delem DAC 310s controller.
  • Delem DAC 360s controller with powered blade gap adjustment.

Hydraulic Guillotine Machine Technical Specification

Type Cutting Cutting length Travel Times Back Gauge Distance Cutting Angle Throat Depth Power Dimension
thickness(mm) (mm) (times/min) (mm) ° (mm) (KW) LxWxH (mm)
6×2500 6 2500 18 550 1.5 100 7.5 3100x1600x2050
6×3200 6 3200 15 550 1.5 100 7.5 3800x1600x2050
8×2500 8 2500 14 550 1.5 100 7.5 3100x1600x2000
8×3200 8 3200 12 550 1.5 100 7.5 3800x1600x2000
8×4000 8 4000 10 550 1.5 100 11 4600x1600x2100
10×2500 10 2500 11 550 2 100 11 3100x1700x2100
10×3200 10 3200 10 550 2 100 11 3800x1700x2100
10×4000 10 4000 9 750 2 100 15 4600x1700x2200
12×2500 12 2500 12 750 2 100 15 3200x1800x2250
12×3200 12 3200 10 750 2 100 15 3900x1800x2250
12×6000 12 6000 5 750 2 100 22 6800x2000x2600
16×2500 16 2500 11 750 2.5 100 18.5 3400x2100x2500
16×3200 16 3200 9 750 2.5 100 18.5 4100x2100x2500
16×6000 16 6000 4 750 2.5 100 22 7000x2300x2800
20×2500 20 2500 8 750 2.5 100 22 3400x2100x2600
20×3200 20 3200 7 750 2.5 100 22 4100x2100x2600
20×4000 20 4000 6 750 2.5 100 30 4900x2200x2700
25×2500 25 2500 7 750 3 120 37′ 3500x2200x2700
25×4000 25 4000 5 750 3 120 37 5000x2300x2900
30×2500 30 2500 6 750 3.5 120 45 3600x2300x2800
30×3200 30 3200 5 750 3.5 120 45 4300x2300x2900
