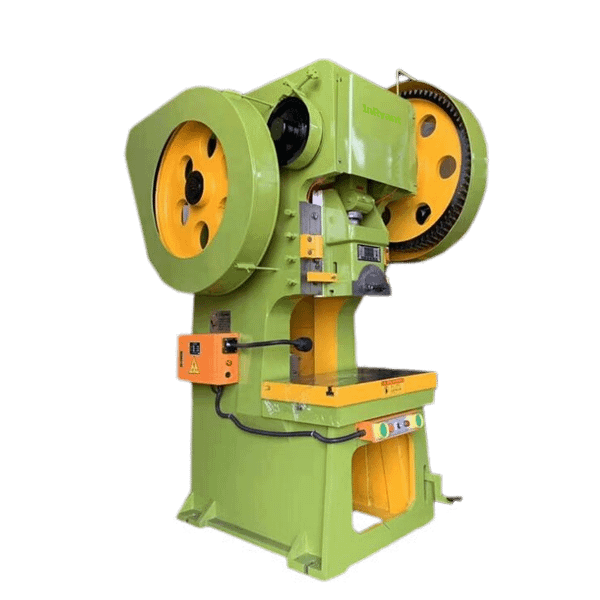

J21 Series Fixed Bed Power Press Machine
- High strength, good rigidity and stable accuracy
- Easy to operate
- Simple structure and easy maintenance
J21 series fixed bed power press mainly suitable for cold stamping processes like blanking, punching, bending, drawing, shearing, forming, etc.
Punching Pressure: 63t –160t
J21 Power Press Machine Features
- Adopts horizontally placed crankshaft.
- Rigid rotated bond clutch.
- Manual shut height adjustment with scale display
- The type with “A” equipped with an emergency stop device, which could make the slide stop ai 0°~135° area and optional equipped with light curtain protection as well.
- The type with “D” adopts a dual rotated bond structure to overcome rebond of punching effectively.
- JC21-160 is equipped with a pneumatic clutch to make slides stop at any position.
J21 Power Press Machine Technical Specification
| Model | J21-63A | JD21-63A | J21-80A | JD21-80A | |
| Capacity | kN | 630 | 630 | 800 | 800 |
| Nominal Force | mm | 8 | 8 | 9 | 9 |
| Slide Stroke | mm | 120 | 120 | 130 | 130 |
| SPM | min-1 | 50 | 50 | 45 | 45 |
| Max. Die Height | mm | 300 | 300 | 350 | 320 |
| Die Height Adjustment | mm | 80 | 80 | 100 | 100 |
| Between Slide Center & Frame | mm | 300 | 300 | 300 | 300 |
| Bolster (FBxLR) | mm | 570×760 | 570×760 | 580×860 | 580×860 |
| Bolster Opening (Up Hole Dia.xDpthxLow Hole Dia.) | mm | Φ200x45xΦ180 | Φ200x45xΦ180 | Φ200x45xΦ180 | Φ200x45xΦ180 |
| Bolster Thickness | mm | 90 | 90 | 100 | 100 |
| Bolster Opening (Dia.xFBxLR) | mm | Casting Φ280x220x320 | Φ280x220x320 | Casting Φ280x220x380 | Φ280x220x380 |
| Steel 220×250 | Steel 220×260 | ||||
| Slide Area (FBxLR) | mm | 280×320 | 280×320 | 280×380 | 280×380 |
| Shank Hole (Dia.xDpth) | mm | Φ50×80 | Φ50×80 | Φ60×75 | Φ60×75 |
| Between Columns | mm | Steel 470 | 320 | Steel 515 | 410 |
| Casting 320 | Casting 410 | ||||
| Motor Power | kW | 5.5 | 5.5 | 7.5 | 7.5 |
| Outline Size (FBxLRxH) | mm | 1550x1410x2610 | 1550x1410x2610 | 1610x1470x2680 | 1925x1470x2675 |
| Model | JD21-100A | JD21-125A | JC21-160 | ||
| Capacity | kN | 1000 | 1250 | 1600 | |
| Nominal Force | mm | 10 | 10 | 6 | |
| Slide Stroke | mm | 140 | 140 | 160 | |
| SPM | min-1 | 38 | 38 | 40 | |
| Max. Die Height | mm | 320 | 320 | 350 | |
| Die Height Adjustment | mm | 100 | 100 | 100 | |
| Between Slide Center & Frame | mm | 380 | 380 | 380 | |
| Bolster (FBxLR) | mm | 710×1100 | 720×1200 | 740×1300 | |
| Bolster Opening (Up Hole Dia.xDpthxLow Hole Dia.) | mm | Φ260x50xΦ220 | Φ260x50xΦ220 | Φ300x50xΦ220 | |
| Bolster Thickness | mm | 120 | 120 | 150 | |
| Bolster Opening (Dia.xFBxLR) | mm | Casting Φ320x250x420 | Casting Φ320x250x420 | Φ470 | |
| Steel 260×290 | Steel 260×290 | ||||
| Slide Area (FBxLR) | mm | 420×560 | 420×560 | 580×770 | |
| Shank Hole (Dia.xDpth) | mm | Φ60×80 | Φ60×80 | Φ65×85 | |
| Between Columns | mm | Steel 630 | Steel 620 | 730 | |
| Casting 580 | Casting 580 | ||||
| Motor Power | kW | 7.5 | 11 | 15 | |
| Outline Size (FBxLRxH) | mm | 1960x1335x2850 | 2060x1600x3000 | 2200x1550x3160 | |
Main Components of J21 Power Press Machine
Crankshaft
Ram and punch head
Gear
Fly Wheel
Copper Sleeve
working table
Working key
Brake Belt
Press Footpedal
Electric Box
Motor
Die Height Ruler
Control button
Connecting rod
Power press lamp
