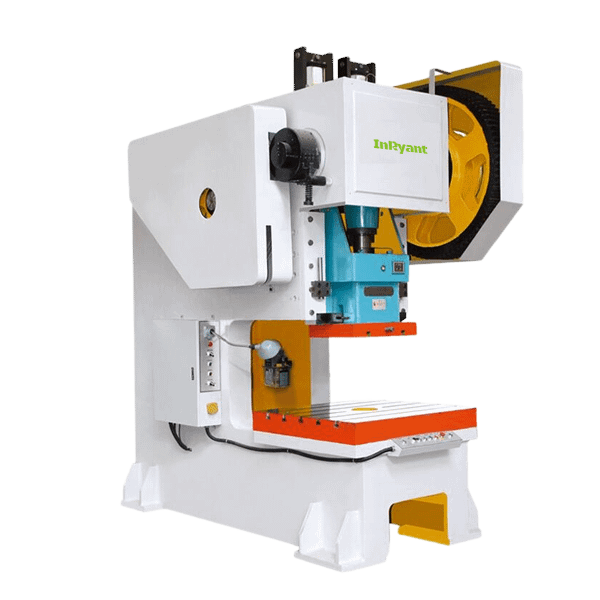

J21S Series Deep throat Power Press Machine
- Small gear noise
- Time and cost-saving
- High processing accuracy
J21S deep throat punching machine is also called deep neck punching or deep-sea mouth punching machine. It refers to the distance from the center of the die hole of the punch to the back wall plate. The throat depth is 300mm, 500mm, 800mm, and 1250mm, which should be customized according to actual production needs.
Punching Pressure: 10t – 100t
J21S Series Deep throat Power Press Machine Features
- J21S series is open type fixed bolster press with a deepened throat. The throat depth is four times that of the common press.
- J21S series press has a large working space that the workpiece can be finished punching without turning around. It is widely used in pressing large size plate material.
- J21S series presses adopt steel plates welded machine body with high strength and rigidity, and adopt rotating key position clutch with convenient operation and maintenance. The machine has smooth and reliable working performance.
J21S Series Deep throat Power Press Machine Technical Specification
| Parameter | Unit | J21S-10 | J21S-16 | J21S-25 | J21S-40 | J21S-63 | J21S-80 | J21S-100 | |
| Nominal Pressure | KN | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | |
| Nominal Stoke | mm | 2 | 2 | 2.5 | 6 | 6 | 7 | 7 | |
| Slide Stroke | mm | 45 | 55 | 65 | 90 | 110 | 120 | 140 | |
| Slide Strokes Per Minute | min | 145 | 125 | 55 | 45 | 40 | 38 | 38 | |
| Max Die Set Height | mm | 180 | 220 | 270 | 320 | 390 | 440 | 480 | |
| Die Height Adjustment | mm | 35 | 45 | 55 | 65 | 80 | 90 | 100 | |
| Throat Depth | mm | 300 | 500 | 600 | 710 | 800 | 800 | 900 | |
| Distance Between Uprights | KW | 208 | 278 | 330 | 480 | 590 | 600 | 720 | |
| Slide Bottom Size | L x R | mm | 170 | 200 | 250 | 300 | 400 | 430 | 540 |
| F x B | mm | 150 | 180 | 220 | 260 | 360 | 360 | 480 | |
| Shank Hole Size | Dia | mm | 30 | 40 | 40 | 50 | 50 | 60 | 60 |
| Depth | mm | 55 | 60 | 60 | 70 | 70 | 75 | 75 | |
| Bolster Size | L x R | mm | 370 | 450 | 560 | 700 | 860 | 950 | 1080 |
| F x B | mm | 240 | 300 | 370 | 460 | 570 | 650 | 710 | |
| Blanking Hole Diameter | mm | 80 | 100 | 120 | 150 | 180 | 200 | 220 | |
| Bolster Thickness | mm | 35 | 40 | 50 | 65 | 80 | 100 | 120 | |
| Bolster Surface Height | mm | 730 | 750 | 800 | 835 | 860 | 850 | 850 | |
| Overall Dimensions | F x B | mm | 835 | 1250 | 1835 | 2183 | 2748 | 272 | 2815 |
| L x R | mm | 665 | 850 | 950 | 1376 | 1500 | 1715 | 1790 | |
| H | mm | 1763 | 2030 | 2215 | 2737 | 2828 | 3290 | 3625 | |
| Bolster Size | F x B | mm | 805 | 17070 | 1420 | 1660 | 2020 | 2050 | 1970 |
| L x R | mm | 418 | 490 | 600 | 735 | 880 | 965 | 1100 | |
| Motor Power | KW | 1.1 | 1.5 | 2.2 | 5.5 | 7.5 | 7.5 | 11 | |
| Weight (Approximate) | KG | 950 | 1750 | 2750 | 5300 | 7600 | 9200 | 10080 | |
Main Components of J21S Power Press Machine
Crankshaft
Ram and punch head
Gear
Fly Wheel
Copper Sleeve
working table
Working key
Brake Belt
Press Footpedal
Electric Box
Motor
Die Height Ruler
Control button
Connecting rod
Power press lamp
Application Industries
Stamping production is mainly for sheet metal. Through the mold, can make drop, punch, molding, deep, dressing, finishing, shaping, riveting and extrusion parts, etc. , widely used in various fields. Such as our switch sockets, cups, cupboards, dishes, computer chassis, and even missile aircraft… There are a lot of accessories that can be produced by mold using punches.
