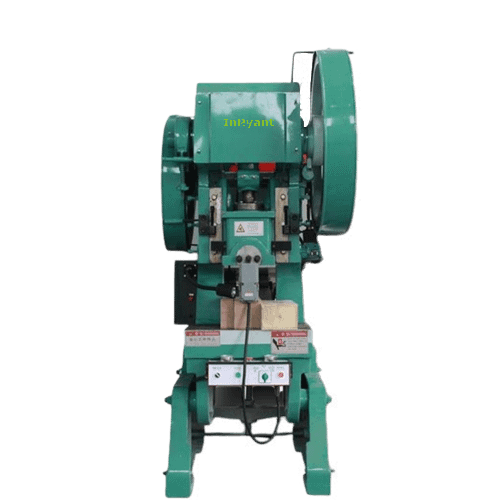

JB23 Series Mechanical Tilting Type Power Press Machine
- Stable processing quality
- High processing precision
- Widely used
JB23 Series Tilting Type Power Press Machine is a C-type mechanical inclinable power press. The tilting press can be widely used in various cold stamping processes such as blanking, punching, shallow drawing, forming, and bending.
Punching Pressure: 10t – 80t
J23 Power Press Machine Features
- High processing precision and stable processing quality.
- Multi-coordinate linkage can be performed, and parts with complicated shapes can be processed for shear forming.
- When the machined parts are changed, generally only the NC program needs to be changed, which saves production preparation time.
- J23 open-type inclinable press machine itself has high precision and rigidity and can choose favorable processing amount and in high productivity.
- The automation of the press is high and the labor intensity can be reduced.
- The requirements for the quality of the operators are higher, and the technical requirements for the maintenance personnel are higher
J23 Series Mechanical Power Press Machine Technical Specification
| Specifications | Unit | J23-10 | J23-16 | J23-25 | J23-40 | J23-63 | J23-80 | |
| Nominal Pressure | KN | 100 | 160 | 250 | 400 | 630 | 800 | |
| Slider Stroke | mm | 50 | 60 | 70 | 100 | 100 | 115 | |
| Slider Stroke Times | mm-1 | 140 | 100 | 70 | 50 | 50 | 45 | |
| Max Closed Height | mm | 200 | 250 | 290 | 350 | 380 | 410 | |
| Nominal Pressure Stroke | mm | 2 | 2 | 2. 5 | 4 | 4 | 5 | |
| Die Height Adjustment | mm | 40 | 40 | 40 | 60 | 60 | 60 | |
| Distance from Slider Center to Machine Body | mm | 130 | 180 | 200 | 250 | 280 | 280 | |
| Bolster Size | F﹒B | mm | 230 | 280 | 330 | 420 | 450 | 500 |
| L﹒R | 370 | 450 | 530 | 640 | 700 | 750 | ||
| Bolster Blanking Hole Size | F﹒B | mm | 135 | 140 | 165 | 210 | 225 | 250 |
| L﹒R | 115 | 225 | 265 | 320 | 350 | 375 | ||
| Dia. | 95 | 125 | 130 | 160 | 190 | 200 | ||
| Bolster Thickness | mm | 30 | 40 | 45 | 70 | 80 | 90 | |
| Slider Subface Size | F﹒B | mm | 100 | 130 | 170 | 190 | 220 | 250 |
| L﹒R | 145 | 180 | 200 | 250 | 310 | 300 | ||
| Shank Hole Size | Dia. | mm | 30 | 35 | 40 | 50 | 50 | 60 |
| Depth | 50 | 60 | 60 | 100 | 100 | 100 | ||
| Columns Interval | mm | 170 | 200 | 230 | 320 | 350 | 360 | |
| Motor Power | Kw | 1. 1 | 1. 5 | 2.2 | 4 | 505 | 7.5 | |
| Motor Speed | R/Min | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | |
| Machine Max Inclined Angle | ° | 20 | 20 | 20 | 20 | 20 | 20 | |
| Machine Outline Size | Length | mm | 740 | 900 | 1000 | 1400 | 1500 | 1600 |
| Width | 600 | 780 | 830 | 1100 | 1200 | 1300 | ||
| Height | 1500 | 1720 | 1950 | 2300 | 2400 | 2600 | ||
| Weight | T | 0.4 | 0.8 | 1.2 | 2.4 | 3 | 4 | |
Main Components of J23 Power Press Machine
Crankshaft
Ram and punch head
Gear
Fly Wheel
Copper Sleeve
working table
Working key
Brake Belt
Press Footpedal
Electric Box
Motor
Die Height Ruler
Control button
Connecting rod
Power press lamp
Application Industries
Stamping production is mainly for sheet metal. Through the mold, can make drop, punch, molding, deep, dressing, finishing, shaping, riveting and extrusion parts, etc. , widely used in various fields. Such as our switch sockets, cups, cupboards, dishes, computer chassis, and even missile aircraft… There are a lot of accessories that can be produced by mold using punches.
