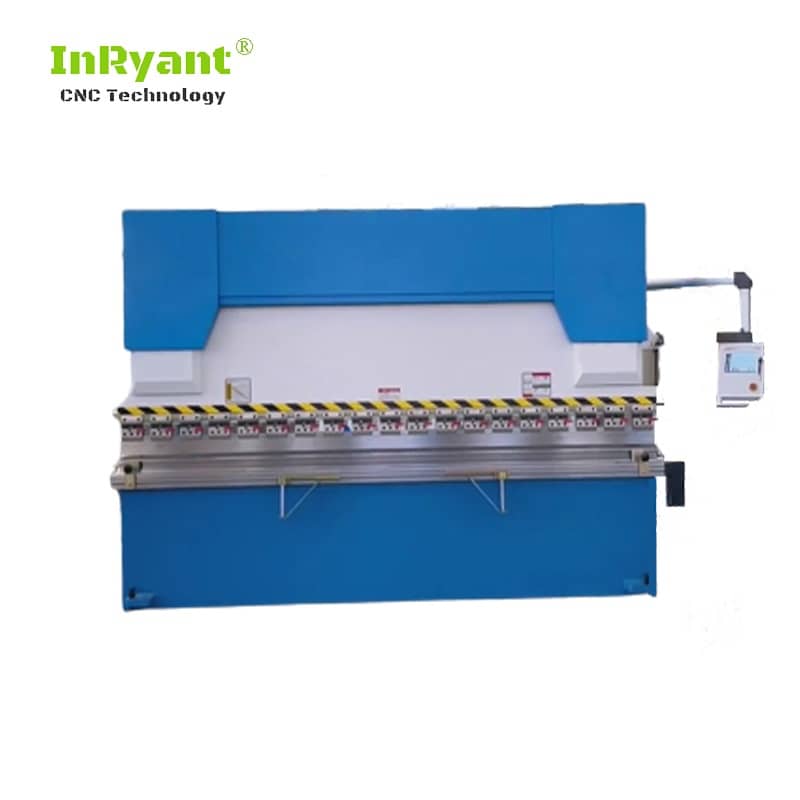

PB Series 2 axis CNC Press Brake Machine with Delem DA41S

  • Bright LCD display
  • Beam stop control
  • Backgauge control
  • Angle programming
  • Tool programming
  • Retract function
  • Up to 100 programs
  •  Up to 25 bends per program

PB Series CNC press brake is a 2 axis CNC hydraulic bender machine, which provides a user-friendly and versatile touch control solution for conventional press brake applications with multiple axes. Upon demand, it is possible to control the press beam, the backgauge as well as a flexible i/o configuration, based on state of the art electronics.
Bending Capacity: 40t – 300t
Bending Width:2500mm – 6000mm

Get Quote
PB Series Hydraulic CNC Press Brake Machine Features

Classic cnc control system DA41S is improved again to control machine tool with torsion shaft perfectly together with servo motor. Advanced functions of angle programming, pressure calculation and built-in logic improve the overall competitiveness of the machine tool. Outstanding product quality erases the worries in the future.

Hydraulic CNC Press Brake Structure

1. Hydraulic Oil Cylinder

2. Slider

3. Stage Die

4. Top Punch

5. Backgauge

6. Front Support

7. Bottom Die

8. Convex Workbench

9.  Workbench

10. Feedback Arm

11. CNC Controller

12. Electrical Cabinet

13. Machine Frame

14. Protection Guard

15. Hydraulic Servo/System

16. Hydraulic System

Generally, the press brake machine including four main parts:

  • Mechanical parts
  • Electrical parts.
  • Hydraulic part.
  • NC/CNC controller
Standard Configuration of PB Series Hydraulic CNC Press Brake
Delem DA41s Controller for cnc press brake

The DA-41 control provides a complete solution for conventional press brake applications for 2 axes. Including the axes control for the press beam and backgauge and flexible I/O configuration, the state-of-the-art electronics offers a versatile solution.

With its bright LCD display, clear and easy control is offered. The numerical programming, having an angle, tool and material parameters on hand, can be done in a direct table overview. The bend parameters can be selected via user-friendly cursor manipulation.
The axes control supports servo control, two-speed AC control as well as unipolar control. Depending on the application you can select either two-side positioning as well as single-side positioning with spindle fault elimination.

Beide-Siemens Motor

From the German brand Siemens motors improve the life of the sheet metal bending machine, and the press brake machine operates in a low noise environment.

Hydraulic Oil Pump

The oil pump adopts a (USA SUNNY) gear pump, which can withstand high pressure and low noise.

Hydraulic Oil Cylinder

lt is recommended to use antiwear hydraulic oil ISO VG46#(the average value of viscosity is 46mm2/s).

Hydraulic Valve Bank

Hydraulic system (Bosch Rexroth) slider can achieve rapid decline, slow down the speed of bending work, and quick return upward, downward and the like during the operation stop of the slider.

Top tool quick release clamps

The quick clamps have the advantages of high precision, reasonable structure, stable clamping.  We greatly shorten the time of press brake upper punch adjustment.

Press Brake Toolings

The toolings (punch and die) of the press brake machine are made from Alloy material(42CrMo), and the hardness can reach 42 degrees to ensure the service life of the molds.

Press Brake Electrical System

The power supply of the CNC bending machine adopts a three-phase AC 50HZ380V power supply. After the AC voltage is output from the internal transformer of the system, it can be directly used for the operation of the main motor, and can also be used for the rear gear servo and equipment lighting. The other group forms two groups of DC 24V after rectification, one group is used by CNC controller, and the other group is used by control loop.

Open Door Power off Switch

Once the worker opens the electric cabinet door, the machine will stop immediately.

Front Support

The sheets can be held on the support to ensure that they are pushed one at a time, which is more convenient for bending work.

Press Brake oil Seal Ring

The sealing ring is selected from NOK, which has good sealing performance, reliable work and long life.

Ball Screw and linear guide

The backgauge is positioned by a precision ball screw and supported by a high-precision linear guide

Press Brake Adjustable Stop Finger

The upper and lower adjustable fine-tuning fingers with higher precision are adopted, and the double linear guide rails on the beam move left and right to ensure the accuracy of the fingers moving to any part in the left and right directions.

Servo Motor

The backgauge use a servo-motor to drive a ball screw or belt drive to exert force on the ram to make it move vertically.

Tubing Connector

The oil pipeline adopts a combination of compression fittings and galvanized cold-drawn pipes, eliminating the need to replace the sealing ring to overcome oil leakage.

Optional Configuration of PB Series CNC Press Brake

Manual anti deflection table

CNC anti deflection table

Light Curtain Safety

Laser Safety

CNC Press Brake Technical Specification
Model Nominal Force Worktable Length Poles Distance Throat Depth Slider Travel Max Opening height Power Dimension
(KN) (mm) (mm) (mm) (mm) (mm) (KW) L*W*H(mm)
40T/2500 400 2500 1875 230 100 320 5.5 2500*1200*1910
50T/2500 500 2500 1875 230 100 320 5.5 2500*1210*2000
63T/2500 630 2500 2020 250 100 320 5.5 2500*1300*2210
63T/3200 360 3200 2575 250 100 320 5.5 3200*1300*2210
80T/2500 800 2500 2020 300 100 320 7.5 2500*1400*2300
80T/3200 800 3200 2590 320 100 350 7.5 3200*1500*2300
80T/4000 800 4000 3050 320 100 350 7.5 4000*1500*2400
100T/2500 1000 2500 2020 320 120 320 7.5 2500*1600*2400
100T/3200 1000 3200 2600 320 120 370 7.5 3200*1600*2600
100T/4000 1000 4000 3050 320 120 370 7.5 4000*1600*2700
125T/3200 1250 3200 2600 320 120 370 7.5 3200*1600*2600
125T/4000 1250 4000 3050 320 120 370 7.5 4000*1600*2700
160T/3200 1600 3200 2600 320 200 460 11 3200*1700*2700
160T/4000 1600 4000 3000 320 200 460 11 4000*1700*2800
160T/5000 1600 5000 4000 320 200 460 11 5000*1900*3100
160T/6000 1600 6000 4940 320 200 460 11 6000*1900*3200
200T/3200 2000 3200 2600 320 200 460 11 3200*1950*2800
200T/4000 2000 4000 3000 320 200 460 11 4000*1950*2800
200T/5000 2000 5000 4000 320 200 460 11 5000*1950*3000
200T/6000 2000 6000 5000 320 200 460 11 6000*1950*3300
250T/3200 2500 3200 2500 400 250 590 18.5 3200*2000*3200
250T/4000 2500 4000 3000 400 250 590 18.5 4000*2000*3400
250T/5000 2500 5000 4000 400 250 590 18.5 5000*2000*3400
250T/6000 2500 6000 5000 400 250 590 18.5 6000*2000*3400
300T/3200 3000 3200 2530 400 250 590 22 3200*2000*3450
300T/4000 3000 4000 3470 400 250 590 22 4000*2000*3450
300T/5000 3000 5000 4000 400 250 590 22 5000*2000*3450
300T/6000 3000 6000 5000 400 250 590 22 6000*2000*3450
Bending Sample of CNC Press Brake Machine
Application Industries

Our Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc. ensure that it can operate possibly during the laser cutting process.
