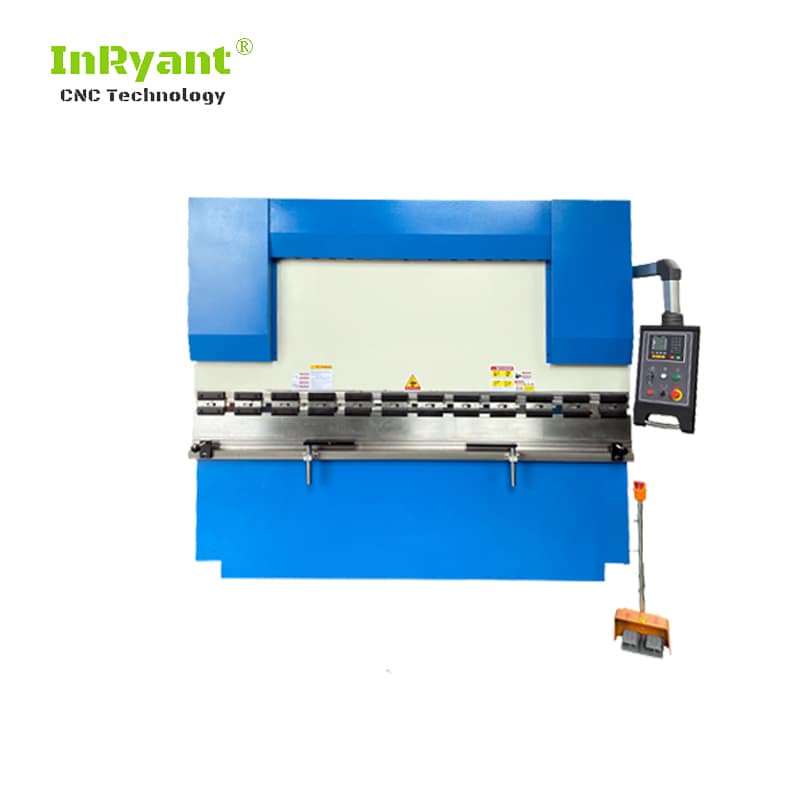

PBA Series Economic CNC Press Brake Machine with Estun E21
- Back gauge control with ball screw and linear guide
- Adjustable back gauge control with digital indicator and front-mounted manual roller
- Y-axis is controlled by CNC
- X controls the back gauge to move front and back
- Manual R axis
- Overall welded and processed structure
- Hydraulic system and digital AC motor drive
- CNC Estun E21
PBA series machine is a hydraulic press brake machine for bending mild steel and stainless steel. The folding length is available from 2.5m to 6m. This press brake is economic and robust, perfectly conceived for small workshops that need to fold light metal. It is simple to use and easily adaptable.
Bending Capacity: 40t – 300t
Bending Width:2500mm – 6000mm
PBA Series Hydraulic Press Brake Features
- European style top tool holders with wedge adjustment.
- Standard tooling: Goose-neck top tool and multi-vee bottom tool
- Front operated, back gauge with digital readout control (to 0.1mm precision) and two finger-stops with micro-adjustable height.
- Ram stroke control by precision mechanical stops built into each cylinder and electrically adjusted by push buttons with a digital position display.
- Independent position control of one cylinder stops to provide fine angle adjustment and/or conical bending possibility.
- Pressure switch and gauge to regulate bending tonnage and to prevent over-bending due to bottoming of tools.
- Pre-set, two-speed bending cycle giving fast approach, slow bending and fast return.
- 3-function foot-switch: normal bending, beam pause at any stroke point, automatic beam return upon release of foot-switch.
- Pendant control unit.
- Hand screw clamps and chains to align and secure bottom die.
- Two back gauge fingers.
- Two front support arms

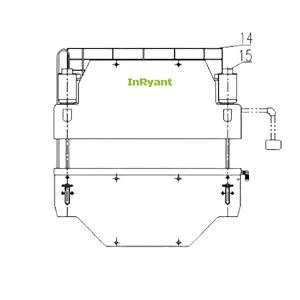

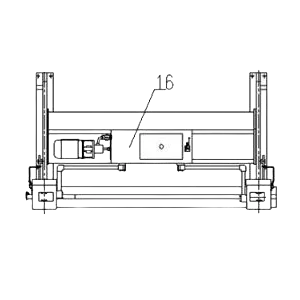

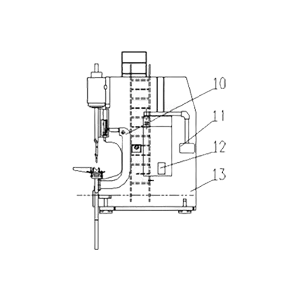

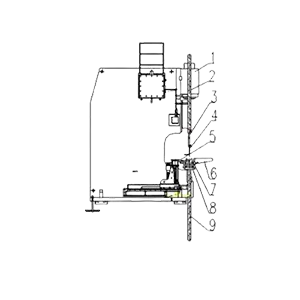

Hydraulic Press Brake Structure
1. Hydraulic Oil Cylinder
2. Slider
3. Stage Die
4. Top Punch
5. Backgauge
6. Front Support
7. Bottom Die
8. Convex Workbench
9. Workbench
10. Feedback Arm
11. CNC Controller
12. Electrical Cabinet
13. Machine Frame
14. Protection Guard
15. Hydraulic Servo/System
16. Hydraulic System
Generally, the press brake machine including four main parts:
- Mechanical parts
- Electrical parts.
- Hydraulic part.
- NC/CNC controller
Standard Configuration of PBA Series Hydraulic Press Brake
Estun E21 Controller for press brake
Estun is one of the listed mainstream companies engaged in the domestic robots industry in China which is equipped with completely proprietary technology. The Estun E21 performance is good, block and block shaft can be positioned rapidly and accurately.
Beide-Siemens Motor
From the German brand Siemens motors improve the life of the sheet metal bending machine, and the press brake machine operates in a low noise environment.
Hydraulic Oil Pump
The oil pump adopts a (USA SUNNY) gear pump, which can withstand high pressure and low noise.
Hydraulic Oil Cylinder
lt is recommended to use antiwear hydraulic oil ISO VG46#(the average value of viscosity is 46mm2/s).
Hydraulic Valve Bank
Hydraulic system (Bosch Rexroth) slider can achieve rapid decline, slow down the speed of bending work, and quick return upward, downward and the like during the operation stop of the slider.
Top tool release clamps
The upper mold is a mechanical hook clamp, which is safer when changing molds
Press Brake Toolings
The toolings (punch and die) of the press brake machine are made from Alloy material(42CrMo), and the hardness can reach 42 degrees to ensure the service life of the molds.
Press Brake Electrical System
The power supply of the CNC bending machine adopts a three-phase AC 50HZ380V power supply. After the AC voltage is output from the internal transformer of the system, it can be directly used for the operation of the main motor, and can also be used for the rear gear servo and equipment lighting. The other group forms two groups of DC 24V after rectification, one group is used by CNC controller, and the other group is used by control loop.
Open Door Power off Switch
Once the worker opens the electric cabinet door, the machine will stop immediately.
Front Support
The sheets can be held on the support to ensure that they are pushed one at a time, which is more convenient for bending work.
Press Brake oil Seal Ring
The sealing ring is selected from NOK, which has good sealing performance, reliable work and long life.
Polished rod and guide rail
High precision, low noise, smooth and wear-resistant
Press Brake Stop Finger
High precision fine tuning finger stopper ensures the positioning accuracy.
Optional Configuration of PBA Series Hydraulic Press Brake
Top tool quick release clamps
Up and down finger stop
Ball screw and linear guide
Frequency Converter
Hydraulic Press Brake Technical Specification
| Model | Nominal Force | Worktable Length | Poles Distance | Throat Depth | Slider Travel | Max Opening height | Power | Dimension |
| (KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (KW) | L*W*H(mm) | |
| 40T/2500 | 400 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
| 50T/2500 | 500 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1210*2000 |
| 63T/2500 | 630 | 2500 | 2020 | 250 | 100 | 320 | 5.5 | 2500*1300*2210 |
| 63T/3200 | 360 | 3200 | 2575 | 250 | 100 | 320 | 5.5 | 3200*1300*2210 |
| 80T/2500 | 800 | 2500 | 2020 | 300 | 100 | 320 | 7.5 | 2500*1400*2300 |
| 80T/3200 | 800 | 3200 | 2590 | 320 | 100 | 350 | 7.5 | 3200*1500*2300 |
| 80T/4000 | 800 | 4000 | 3050 | 320 | 100 | 350 | 7.5 | 4000*1500*2400 |
| 100T/2500 | 1000 | 2500 | 2020 | 320 | 120 | 320 | 7.5 | 2500*1600*2400 |
| 100T/3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 100T/4000 | 1000 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
| 125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 125T/4000 | 1250 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
| 160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
| 200T/3200 | 2000 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
| 200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1950*2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1950*3000 |
| 200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000*1950*3300 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 3200*2000*3200 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000*2000*3400 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000*2000*3400 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000*2000*3400 |
| 300T/3200 | 3000 | 3200 | 2530 | 400 | 250 | 590 | 22 | 3200*2000*3450 |
| 300T/4000 | 3000 | 4000 | 3470 | 400 | 250 | 590 | 22 | 4000*2000*3450 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 | 5000*2000*3450 |
| 300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 | 6000*2000*3450 |
Bending Sample of Hydraulic Press Brake Machine
Application Industries
Our Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc. ensure that it can operate possibly during the laser cutting process.
Quality Control
InRyant CNC Tech meets the demands of customers for high-quality products with a strict quality control system.
Our factory has advanced test equipment and a team of excellent mechanical engineers.
We also ensure the stability and traceability of the spare parts, so as to get excellent products with superior quality.
Through strict quality management, the factory controls potential quality risk from the beginning to the finishing of machines.
Packaging and shipment
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging the machine: Avoid all damage that may occur during the delivery. Then we will cover the machine with plastic film tightly to avoid water and rust. The outermost is a wooden box with a fixed template.
FAQ
Q: There are so many machine types, which one should I choose?
A: Please communicate with us via inquiry or email, we can guide you.
Q: This is my first time buying your machine; I have no ideas about your machine’s quality?
A: Each machine is strictly produced based on standard certifications. We are confident to tell customers that there is no need to worry about our quality. Welcome you visit our factory anytime
Q: When I got this machine, but I don’t know how to use it. What should I do?
A: There are video and English manuals with the machine. If you still have any doubts, we can talk by telephone. we supply 24 hours online service.
Q: If some problems happen to this machine during the warranty period, what should I do?
A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service.
Q: Machine delivery time?
A: Within 20-30 working days after get your payment.
