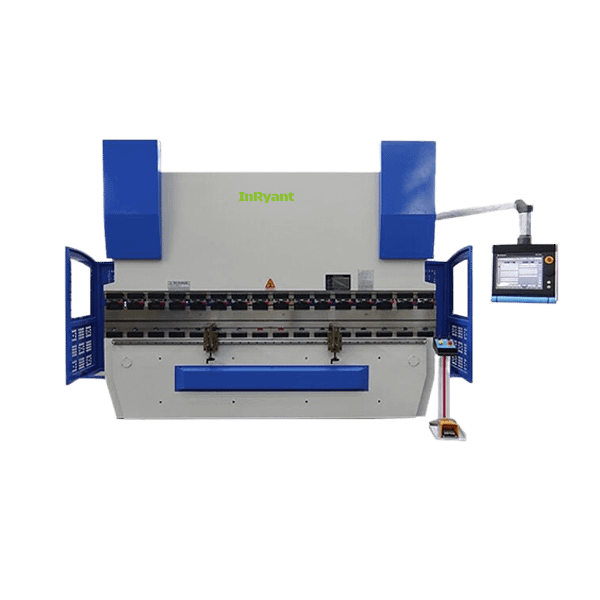

PBXS 6+1 axis CNC Press Brake Machine with Delem DA66T

  • 2D graphical touch screen programming mode
  • 17″ high-resolution colour TFT
  • Full Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User-specific application support within the control’s multitasking environment
  • Sensor bending & correction interface Profile-TL offline software

PBXS CNC press brakes are fitted with the Delem DA66T Multi-axis controller, which is an advanced, user-friendly and intuitive
programming unit. While data input into the DA66T is very rapid, there is also the option of preparing the production offline on a PC with the software provided, enabling feasibility checks prior to production. Multi bend operations with complex forms can therefore be effectively managed reducing operator error and over or under bending. All axes are fully synchronized and accurate to 0.01mm utilizing proportional valve technology.
Bending Capacity: 40t – 300t
Bending Width:2500mm – 6000mm

Get Quote
PBS Series CNC Press Brake Machine Features
  • Delem DA66T 2D Touch Controller
  • Full synchronization of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy
  • High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load
  • CNC-controlled X axis ballscrew backgauge with servo drive motors
  • 2 micrometric backgauge finger-stops with lateral adjustment
  • Steel mono-block construction
  • Polished chrome plated and ground cylinders
  • Long-stroke and large open height dimensions
  • High approach and return speeds for production bending
  • Euro-style quick release top tool holders with intermediaries including wedges for crowning
  • 88 degree sectionalized gooseneck top tool
  • 4-way sectionalized multi vee bottom tool
  • 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee
  • Double footswitch control and pendant type control arm
  • DSP laser tooling guards
  • Electrically interlocked side guards
  • Electrically interlocked read access door

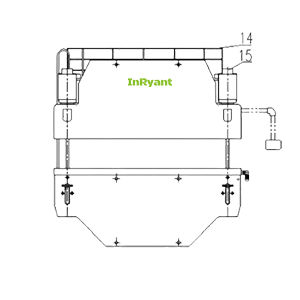

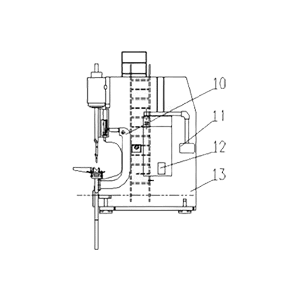

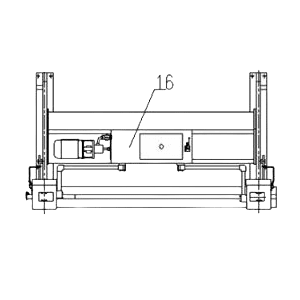

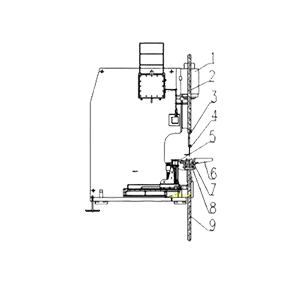

Hydraulic CNC Press Brake Machine Structure

1. Hydraulic Oil Cylinder

2. Slider

3. Stage Die

4. Top Punch

5. Backgauge

6. Front Support

7. Bottom Die

8. Convex Workbench

9.  Workbench

10. Feedback Arm

11. CNC Controller

12. Electrical Cabinet

13. Machine Frame

14. Protection Guard

15. Hydraulic Servo/System

16. Hydraulic System

Generally, the press brake machine including four main parts:

  • Mechanical parts
  • Electrical parts.
  • Hydraulic part.
  • NC/CNC controller
Standard Configuration of PBS Series Hydraulic CNC Press Brake Machine
Delem DA66T Controller for CNC Press Brake Machine

The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

Siemens Motor

From the German brand Siemens motors improve the life of the sheet metal bending machine, and the press brake machine operates in a low noise environment.

Sunny Pump

The oil pump adopts a (USA SUNNY) gear pump, which can withstand high pressure and low noise.

Hydraulic Oil Cylinder

lt is recommended to use antiwear hydraulic oil ISO VG46#(the average value of viscosity is 46mm2/s).

Hydraulic Valve Bank

Hydraulic system (Bosch Rexroth) slider can achieve rapid decline, slow down the speed of bending work, and quick return upward, downward and the like during the operation stop of the slider.

Top tool quick release clamps

The quick clamps have the advantages of high precision, reasonable structure, stable clamping. We greatly shorten the time of press brake upper punch adjustment.

Press Brake Toolings

The toolings (punch and die) of the press brake machine are made from Alloy material(42CrMo), and the hardness can reach 42 degrees to ensure the service life of the molds.

Press Brake Electrical System

The power supply of the CNC bending machine adopts a three-phase AC 50HZ380V power supply. After the AC voltage is output from the internal transformer of the system, it can be directly used for the operation of the main motor, and can also be used for the rear gear servo and equipment lighting. The other group forms two groups of DC 24V after rectification, one group is used by CNC controller, and the other group is used by control loop.

Open Door Power off Switch

Once the worker opens the electric cabinet door, the machine will stop immediately.

Front Support

The sheets can be held on the support to ensure that they are pushed one at a time, which is more convenient for bending work.

Press Brake oil Seal Ring

The sealing ring is selected from NOK, which has good sealing performance, reliable work and long life.

Ball Screw and linear guide

The backgauge is positioned by a precision ball screw and supported by a high-precision linear guide

Press Brake Adjustable Stop Finger

The upper and lower adjustable fine-tuning fingers with higher precision are adopted, and the double linear guide rails on the beam move left and right to ensure the accuracy of the fingers moving to any part in the left and right directions.

Grating scale close-looped device

Imported internationally renowned flat brand electro-hydraulic servo valve and grating ruler constitute a closed-loop control mode

Safety Fence

Protective guards on each side can protect the worker during operation.

Servo Motor

The backgauge use a servo-motor to drive a ball screw or belt drive to exert force on the ram to make it move vertically.

Tubing Connector

The oil pipeline adopts a combination of compression fittings and galvanized cold-drawn pipes, eliminating the need to replace the sealing ring to overcome oil leakage.

Safety Laser
CNC Press Brake Machine Crowing
Optional Configuration of PBA Series Hydraulic Press Brake
  • Cybelec ModEva 12S 3D graphical CNC control
  • Cybelec ModEva 15S 3D CNC control
  • Delem DA69T 3D graphical touchscreen CNC control
  • X1 + X2, R or R1 + R2, Z or Z1 + Z2 axes
  • Wila’s hydraulic tool holding system
  • BOKE backgauge
CNC Press Brake Machine Technical Specification
Model Bending Bending  Column Throat Slider Daylight X-axis Back Main L*W*H Weight
Force Length Distance Depth Stroke (mm) Max. stopper Motor (mm) (T)
(kn) (mm) (mm) (mm) (mm) Distance (pcs) (kw)
(mm)
WE67K-63T/2500 630 2500 1900 350 170 380 500 2 5.5 3100*1450*2050 5.8
WE67K-100T/3200 1000 3200 2700 400 200 420 500 3 7.5 3500*1580*2400 8.5
WE67K-110T/3200 1100 3200 2700 400 200 420 500 3 7.5 3500*1580*2400 8.8
WE67K-125T/3200 1250 3200 2700 400 200 420 500 3 11 3500*1580*2400 9.5
WE67K-135T/3200 1350 3200 2700 400 200 420 500 3 11 3500*1580*2400 9.9
WE67K-160T/3200 1600 3200 2700 400 200 420 500 3 11 3500*1650*2500 11
WE67K-175T/3200 1750 3200 2700 400 200 420 500 3 11 3500*1650*2500 11
WE67K-200T/3200 2000 3200 2700 400 200 420 500 3 15 3500*1680*2550 14
WE67K-250T/3200 2500 3200 2700 400 200 420 500 3 15 3500*1700*2600 15.5
WE67K-300T/3200 3000 3200 2700 400 200 420 500 3 22 3500*1800*2730 16.8
WE67K-400T/4000 4000 4000 3500 400 320 420 500 4 30 4500*2450*3500 31
WE67K-500T/6000 5000 5000 4900 500 320 600 800 6 37 6500*2810*4500 53
WE67K-600T/6000 6000 6000 4900 500 320 600 800 6 45 6500*2910*5100 68
Bending Sample of Hydraulic Press Brake Machine
Application Industries

Our Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc. ensure that it can operate possibly during the laser cutting process.

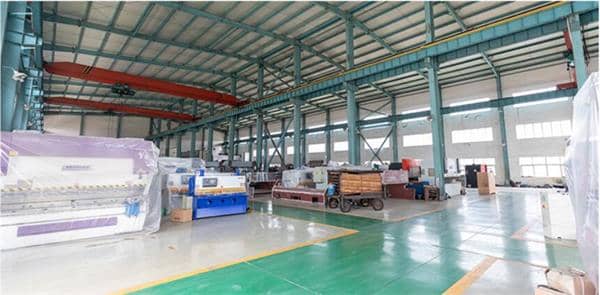

Quality Control

InRyant CNC Tech meets the demands of customers for high-quality products with a strict quality control system.
Our factory has advanced test equipment and a team of excellent mechanical engineers.
We also ensure the stability and traceability of the spare parts, so as to get excellent products with superior quality.
Through strict quality management, the factory controls potential quality risk from the beginning to the finishing of machines.

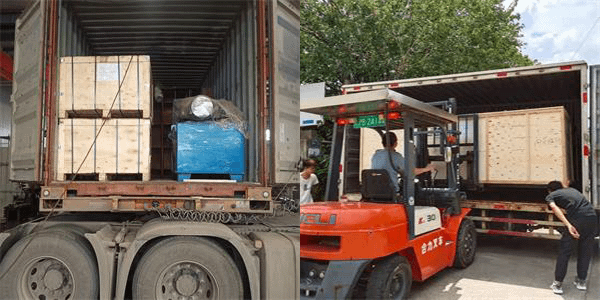

Packaging and shipment

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging the machine: Avoid all damage that may occur during the delivery. Then we will cover the machine with plastic film tightly to avoid water and rust. The outermost is a wooden box with a fixed template.

FAQ

Q: There are so many machine types, which one should I choose?

A: Please communicate with us via inquiry or email, we can guide you.

Q: This is my first time buying your machine; I have no ideas about your machine’s quality?

A: Each machine is strictly produced based on standard certifications. We are confident to tell customers that there is no need to worry about our quality. Welcome you visit our factory anytime

Q: When I got this machine, but I don’t know how to use it. What should I do?

A: There are video and English manuals with the machine. If you still have any doubts, we can talk by telephone. we supply 24 hours online service.

Q: If some problems happen to this machine during the warranty period, what should I do?

A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service.

Q: Machine delivery time?

A: Within 20-30 working days after get your payment.
