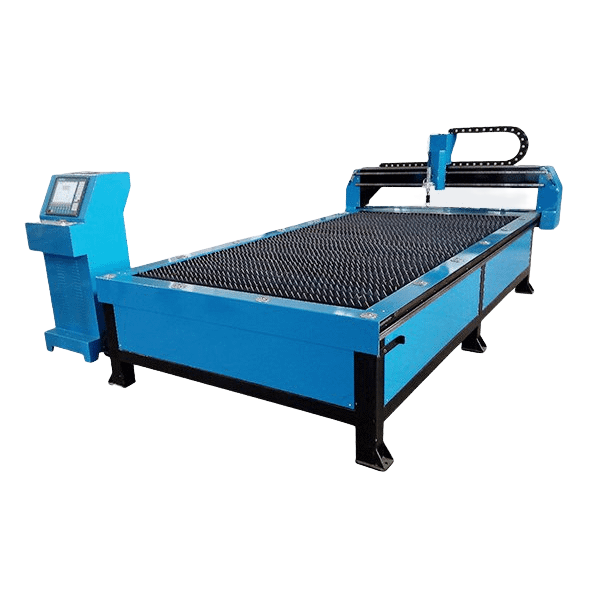

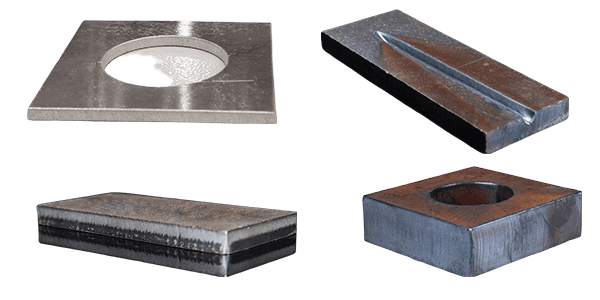

DPL Series Desktop plasma cutter
- Effective Cutting Size: 1300x3000mm
- Cutting Thickness: depend on the plasma power
- Cutting Speed: 20-4000mm/min
Desktop plasma cutter adopts bi-side driving, high precision linear guide rail and gear rack drive, integrated desktop design.
The effective cutting size can be customized according to customer requirements.
Completely intelligent cutting process, automatically adjusts the cutting height and speed, automatically adjust the cutting airflow pressure and rate.
DPL Series Desktop plasma cutter Technical Specification
| Model/Specification | DPL-1325 | DPL-1530 | DPL-1830 | DPL-2030 |
| Input Power | AC 220V±10％ 50-60Hz 1.0KW， Plasma 380V | |||
| Cutting Method | Plasma cutting, Flame cutting ( Customizable ) | |||
| NC Controllable Width | 1900mm | 2100mm | 2300mm | 2500mm |
| NC Controllable Length（customizable） | 3100mm | 3600mm | 3600mm | 3600mm |
| Effective Cutting Size | 1300*2500mm | 1500*3000mm | 1800*3000mm | 2000*3000mm |
| Cutting Torch Lifting Height | 120mm | |||
| Cutting Torch Quantity | plasma/flame cutting torches | |||
| CNC Cutting Torch Quantity | 1 pc | |||
| Cutting Thickness (mm) | Depending on the plasma power/flame cutting 6-150mm | |||
| Idle Running Speed | 0—5000mm／min | |||
| Cutting Speed | 20—4000mm／min | |||
| Drive | Rack: double-side drive | |||
| CNC Controller | Shanghai Fangling, 10-inch industrial control display | |||
| Accessories | Lifting pipeline toweling chain, one set of tools | |||
| Automatic Height-adjustment | 1 | |||
| Nesting Software | FASTCAM( junior expert edition)/ SMARTCUT | |||
| Guide Rail Base, Cutting Rack | Factory Making | |||
GPL Series Gantry plasma cutter
- Center Distance of Guide Rail: 3-4m
- Effective Cutting Width: 2.5-3.5m
- Cutting Thickness: depend on the plasma power
Gantry plasma cutter is specially designed for those who need longer longitudinal cutting distance (customized).
Generally, the center distance of the guide rail is 3-4 meters. The cutting head can be plasma cutting or flame cutting or both of them.
GPL Series Gantry plasma cutter Technical Specification
| Guide Rail Distance | 3m/4m |
| Longitudinal Length of Guide Rail | 8m |
| Oxy-Acetylene Torch | 1 pc |
| Plasma Torch | 1 pc |
| Moving Accuracy | 0.01mm/step |
| Driving Method | biperipheral drive |
| Effective Cutting Width | 2.5m/3.5m |
| Effective Cutting Length | 7.0m (customized) |
| Oxy-Acetylene Cutting Thickness | 5-200mm |
| Plasma Cutting Thickness | depend on plasma power |
| Moving Speed | 0-5000mm/min |
| Stroke Automatic Adjustment | 0-200mm |

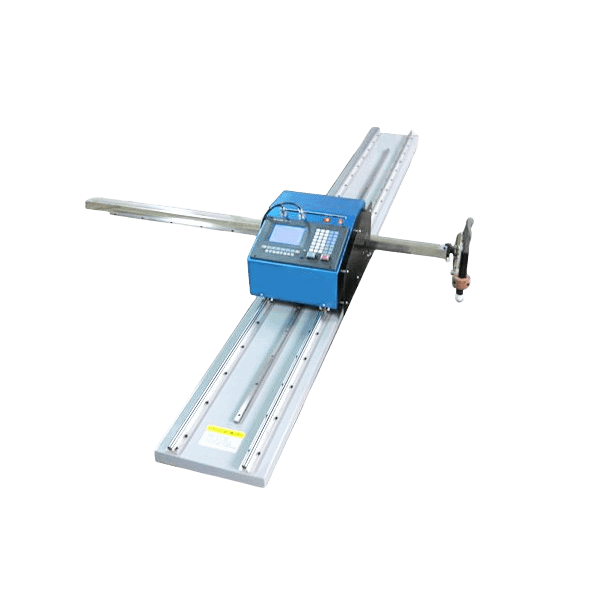

PPL Series Portable plasma cutter
- Effective Cutting Size: 1200x6000mm
- Cutting Speed: 10-3000mm/min
- Cutting Thickness: depend on the plasma power
The portable plasma cutting machine can cut any complex plane figure like the gantry heavy-duty NC cutter.
It is as convenient and flexible as a semi-automatic cutting machine. It can be moved at will and no fixed site is required.
PPL Series Portable plasma cutter Technical Specification
| Effective Cutting Size | 1200x2500mm(max. 6000mm) |
| Cutting Speed | 10-3000mm |
| Max Moving Speed | 3000mm/min |
| Cutting Thickness | 5-180mm |
| Electric Power | 220V/50Hz |
| Oxygen Pressure | 0.3～0.8MPa |
| Fuel Gas Pressure | 0.02～0.08MPa |
| Cutting Software | Australia FastCAM |
| Display | 5.7 inch LCD. |
| Cutting Shape | Programmable |
PL Series plasma cutting machine CNC Controller
Technical Indicator
● Control Axis: 2 axis linkage(3 axes customizable)
● Control accuracy: +/-0.001mm
● Coordinate range: +/- 99999.99mm
● Max pulses: 200 kHz.
● Max speed: 15,000 mm/m
● Max lines of code: 80,000lines
● Max size of single code file: 4M
● Time resolution: 10ms
● Working Voltage: DC +24V direct-current power input, power > 80W。
● Working Temperature: -10℃~+60℃. Relative Humidity, 0~95%.
● Max power of drive arc THC motor: 45W (suitable for models with “T”). if need more power, can select the maximum value: 200W.
Hardware Configuration
● Monitor: F2100B, 7 inches 800*480, high definition 16 million colors and high brightness LCD
● Memory: 64M SDRAM
● Program space available for user: 256M electronic hard disk
● CPU frequency: 400MHz
● USB: USB 1.1 front interface, at least 16GB U disk supportable
● Keyboard: PCB keyboard
● Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity
PL Series plasma cutting machine Power Source – Huayuan
| Item | Unit | Models | |||||
| LGK-63IGBT | LGK-100IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT | LGK-300IGBT | ||
| Input Power | V/Hz | 3～380±15％ 50/60 | |||||
| Rated Input Capacity | KVA | 9.5 | 17.8 | 22.4 | 32.2 | 38.8 | 70.1 |
| Rated Input Current | A | 14.5 | 27 | 34 | 49 | 71 | 100 |
| Rated Output Current | A | 63 | 100 | 120 | 160 | 200 | 300 |
| Rated Output Voltage | V | 106 | 120 | 128 | 144 | 160 | 200 |
| Rated Output Circuit Voltage | V | 300 | 300 | 300 | 315 | 315 | 380 |
| Rated Duty Cycle | – | 60% | 100%（40℃） | ||||
| （40℃） | |||||||
| Output Current Adjust Range | A | 30-63 | 30-100 | 30-120 | 40-160 | 40-200 | 60-300 |
| Arc Voltage Output Radio | – | 1:1/1:20/1:50/1:100 | |||||
| Handheld Quality Cut Thickness | mm | 0.3-12 | 0.3-22 | 0.3-25 | 1-35 | 1-45 | 1-50 |
| (Carbon Steel) | |||||||
| Handheld Severance Cut Thickness | mm | 25 | 40 | 45 | 55 | 65 | 80 |
| (Carbon Steel) | |||||||
| Plasma Gas | – | Non-contact | |||||
| Air Pressure | Mpa | 0.3-0.5 | 0.4-0.6 | 0.45-0.6 | |||
| Torch Cooling Mode | – | Air Cooling | Air Cooling/Water Cooling | ||||
| Power source Cooling Mode | – | Air Cooling | |||||
| Insulation Grade | – | F | |||||
| Ingress Protection | – | IP21S | |||||
| Dimension | 33 | 585*280*485 | 695*320*580 | 800*380*610 | 800*380*810 | 890*430*900 | |
| (LxWxH) | |||||||
| Net Weight | Kg | 26 | 51 | 52 | 73 | 82 | 140 |
