A single table laser

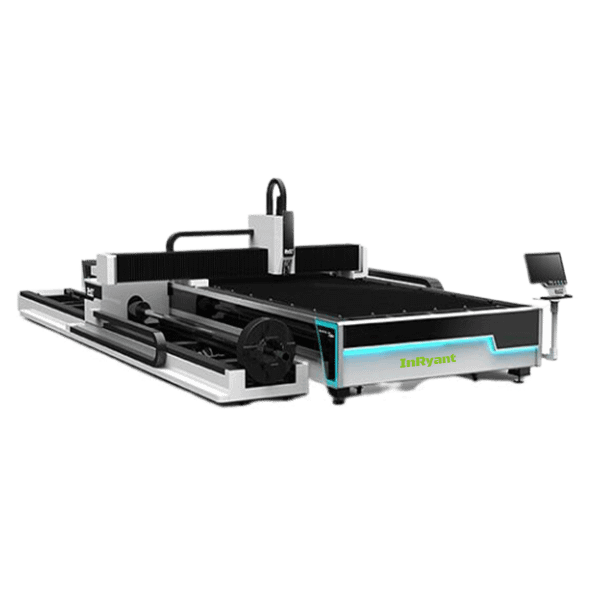

TA1 Series Sheet and Tube Laser Cutting Machine

  • Simple operation, user-friendly
  • One machine dual-use
  • High speed and more efficiency

TA1 series single platform sheet & tube laser cutting machine.

Laser power:1000-20000W(optional)

Processing size(length * width)(Optional)

Tube processing max dia. φ210mm

Get Quote
Tube Laser Cutting Machine Mechanical Parts
Laser Bed: steel plate and tube welded, tempered, high rigidity, high precision, good stability
Laser Cutting Machine Beam: cast aluminum alloy, light load, guaranteed acceleration
Laser Cutter Machine Guide rail: H-class linear guide rail, high precision and fast speed
Laser Cutting Machine Frame: precision rack and pinion, high speed
Fiber Laser Cutting Machine Parameter
Maximum sheet size 3000x1500mm/4000 x2000mm/6000 x2000mm/or customized size
Laser type Fiber laser generator
Laser power 1000w,1500w.2000w,3000w,4000w,6000w
Transmission system Gantry double-drive structure
Lubrication system Full-automatic
Maximum speed 100m/min
Reposition accuracy ±0.02mm/1000mm
Graphic format supported CAD. DXF (etc)
Maximum acceleration 1.5G
Positioning accuracy ±0.03mm/1000mm
Working environment Temp:0-40℃, humidity:≤80%
Power supply 3 PHASE 380V/50Hz or 60Hz
Application material MS/SS/Aluminum/Copper Metal Sheet
The Main Parts of Fiber Laser Cutting Machine
Raytools Laser Cutting Head

The Raytools laser cutting head from Switzerland has an automatic sensor function, which is suitable for different focal lengths and is controlled by the system. For plates of different thicknesses, the focus will be automatically adjusted during the cutting process to achieve the best cutting effect.

Raycus Laser Power Source

InRyant Laser cooperation with Raycus, IPG, MAX and nLIGHT with strict quality testing of every fiber source. Double strict selection is trustworthy.

FSCUT3000S CNC Controller

FSCUT3000S system is designed for tube cutting control, support standard tube(rectangle, circle, oval, ellipse and obround, etc.) , free form, and steel channels(T/U/H/L shape) production of high precision and efficiency.

Gear Rack & Linear Guide

The laser head is moved along the HIWIN linear guides (Taiwan) and YYC gear rack. The moving speed of the X and Y axis can max 120m/min which is very helpful to improve the production efficiency.

Yaskawa servo motors and drives

The maximum speed increased a lot due to the excellent servo motor and drive

Japan SHIMPO Reducer

Special reducer for laser cutting machine with high precision,super quet, long-life no oil leakage, high torque and other excellent features

water chiller
S&A Water Cooling System

The water cooling system takes away the heat generated during the operation of the machine and protects the fiber laser metal cutting machine from damage.

Japan SMC automatic gas selection system

Controlling Oxygen gas is from SMC with pressure ranges from 0-1 Mpa which helps to cut thick carbon steel

Franch Schneider Electric Components

Over voltage resistance, high performance limitation to fast closing independent of the speed of actuation of the toggle.

Automatic Lubrication

We can set the adding oil’s frequency and quantity by Automatic Lubrication System on the computer, so it largely improves the machine’s lifetime, saves manpower.

Tube cutting rotary

Saddle-shaped pipe type support beam is with high precision calibration, no deformation during 12m pipe cutting.

Japan NSK Bearings

These bearing seats have square flanges and can be easily connected to the machine with four bolts.

Due to the simple mounting surface, the bearing unit is widely used.

Tube Fiber Laser Cutter Machine Cutting thickness and speed
Material Thickness (mm) 1000W 1500W 2000W 3000W 4000W 6000W
Maximum Cutting Speed (m/min.)
Mild Steel      (O2) 0.8 18 N2
1 10 20(N2) 25 30(N2),10(O2) 35(N2),10(O2) 10 35
2 4 5 5.2 5.2 5.2 5-5.5 25
3 3 3.6 4.2 4.5 4.5 3.6-4.2 14
4 2.3 2.5 3 3.6 3.5 3.3-3.8 5
5 1.8 1.8 2.2 3.2 3.2 3-3.6 6.4
6 1.5 1.4 1.8 2.6 2.8 2.7-3.2 5
8 1.1 1.2 1.3 2.2 2.3 2.2-2.5
10 0.8 l 1.1 1.1-1.3 2 2.0-2.3
12 0.8 0.9 0.9-1.1 1.2 0.9-2.1
14 0.65 0.8 0.8-0.9 1 0.8-1.7
16 0.5 0.7 0.7-0.8 0.8 0.8-1.4
18 0.5 0.65-0.7 0.7 0.65-0.75
20 0.4 0.55-0.65 0.65 0.6-0.7
22 0.5-0.55 0.6 0.55-0.65
25 0.5 0.55
30 0.5
Stainless Steel (N2) 0.5
0.8 20
1 13 20 28 35 40 60
2 6 7 10 13 20 30
3 3 4.5 5 7 12 18
4 1 / 3 5 7 12
5 0.6 1.5 2 4 4.5 8
6 0.8 1.5 3 3.5 5
8 0.6 1.2 1.8 3.8
10 0.8 1.2 2
12 0.8 1.2
14 1
16 0.6
18 0.5
20 0.3
Al(N2) 0.8 18
1 10 18 20 25 30 50
2 5 6 10 15 20 25
3 1.5 25 4 8 13 16
4 0.8 1.5 5 7 10
5 0.9 3 5 6
6 0.6 2 3 4
8 0.8 1.3 2
10 0.8 1.2
12 0.7
14 0.5
16 0.4
Copper(N2) 1 9 15 18 22 28 40
2 2 5 8 12 15 20
3 0.8 1.8 6 5 8 14
4 1 1.3 3 5 9
5 0.8 2 3 5.5
6 0.4 1.3 2.5 3.8
8 0.6 1 1.8
10 0.6 1
12 0.7
Cutting Sample of Fiber Laser Cutter Machine
Round Tube cutting Square Tube cutting Tube cutting Tube cutting Tube cutting
Carbon cut Aluminum Cutting Carbon cut Copper cutting stainless steel cutting
Application Industries

Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc. ensure that it can operate possibly during the laser cutting process.

Quality Control

Machine Body testing is important for checking the quality of a laser machine, especially motion parts installation, which ensure running and cutting accuracy, here we introduce to you how we Test our laser machine
1. Linear guide parallelism examination, our requirement ≤±0.02mm
2. Rack installation, accuracy lower than ≤±0.02mm
3. Guide gap detection, our requirements, our requirement≤±0.03mm

Packaging and shipment

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging the machine: Avoid all damage that may occur during the delivery. Then we will cover the machine with plastic film tightly to avoid water and rust. The outermost is a wooden box with a fixed template.

FAQ

Q: There are so many machine types, which one should I choose?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) . What work table size you will need? 2). What work you will do?

Q: This is my first time buying your machine; I have no ideas about your fiber laser cutting machine’s quality?

A: Each machine is strictly produced based on standard certifications. We are confident to tell customers that there is no need to worry about our quality. Welcome you visit our factory anytime

Q: When I got this machine, but I don’t know how to use it. What should I do?

A: There are video and English manuals with the machine. If you still have any doubts, we can talk by telephone. we supply 24 hours online service.

Q: If some problems happen to this machine during the warranty period, what should I do?

A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service.

Q: Machine delivery time?
A: Within 20-30 working days after get your payment.
