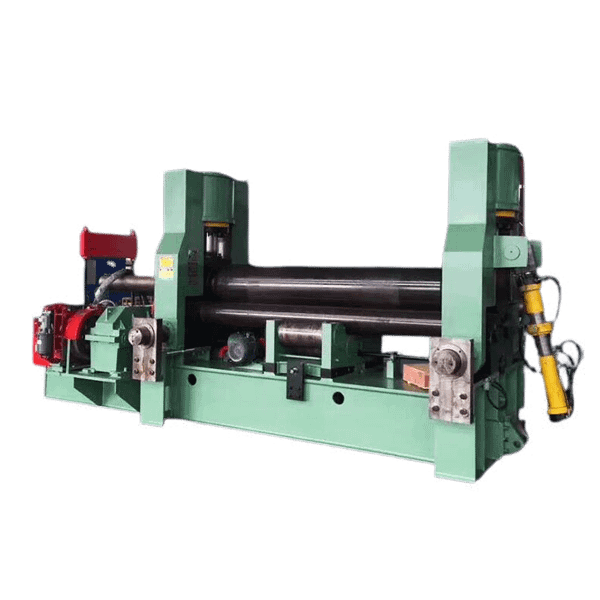

W11S Hydraulic 3-roller symmetrical Rolling machine
- High precision edge pre-bending
- Able to bend O, U, multi-section R shape, etc
- Cone bending device for conical bend easily
W11S Hydraulic 3-roller symmetrical Rolling machine is a universal plate rolling machine.
It is a special equipment to roll the plate into curve, cylinder, conical in the principle of the three-point circle under normal temperature.
Rolling thickness: 12mm – 160mm
Bending Width:2000mm – 4000mm
W11S Hydraulic Rolling machine Features
1.High Precision end Pre-bending
The straight edge length can be set freely, the upper roller press to pre-bend NC Control, high productivity. Parameters are controlled by NC, easy for operation, improve productivity greatly
2.Good accuracy
The upper roller is like a drum, the lower rollers assorted with it through support rollers. Bend continuously can roll ideal products from thin to thick plates widely
3.Safety Insurance
The lower rollers are fixed, the upper roller moves vertically and horizontally. The job does not work with the working rollers. Complete structure, simple foundation, convenient movement. The machine has a unitary basement, does not need earth bolts, has a simple foundation
4. Many kinds of bending shapes
Cone cylinder auxiliary device, you can roll a range of cone-cylinder. O-bending: bending the back way; U-bend: the way forward bending. Bend with type R, ways of combination
W11S Hydraulic Rolling machine Technical Specification
| Model | Pressure (Ton) | Max bending thickness(mm) | Max rolling length (mm) | Upper roller diameter (mm) | Down roller diameter (mm) | Rollers distance (mm) | Motor (kw) | |||
| Pre-bending （mm） | Max bending（mm） | mm | Driving | Hydraulic | Moving | |||||
| W11S-6×1500 | 25 | 4.8 | 6 | 1500 | 175 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-6×2000 | 25 | 4.8 | 6 | 2000 | 195 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-6×2500 | 25 | 4.8 | 6 | 2500 | 205 | 135 | 180 | 3 | 2.2 | 0.75 |
| W11S-6×3000 | 37 | 4.8 | 6 | 3000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-8×1500 | 25 | 6.4 | 8 | 1500 | 175 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-8×2000 | 25 | 6.4 | 8 | 2000 | 195 | 125 | 160 | 3 | 2.2 | 0.75 |
| W11S-8×2500 | 37 | 6.4 | 8 | 2500 | 205 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-8×3000 | 45 | 6.4 | 8 | 3000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10×1500 | 37 | 8 | 10 | 1500 | 205 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10×2000 | 45 | 8 | 10 | 2000 | 215 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10×2500 | 45 | 8 | 10 | 2500 | 235 | 135 | 180 | 4 | 2.2 | 0.75 |
| W11S-10×3000 | 65 | 8 | 10 | 3000 | 245 | 135 | 180 | 5.5 | 4 | 0.75 |
| W11S-10×4000 | 75 | 8 | 10 | 4000 | 255 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-12×2000 | 65 | 9.6 | 12 | 2000 | 250 | 145 | 200 | 5.5 | 4 | 0.75 |
| W11S-12×2500 | 65 | 9.6 | 12 | 2500 | 255 | 150 | 245 | 5.5 | 4 | 0.75 |
| W11S-12×3000 | 75 | 9.6 | 12 | 3000 | 270 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-12×6000 | 100 | 9.6 | 12 | 6000 | 290 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16×2000 | 75 | 12.8 | 16 | 2000 | 255 | 150 | 245 | 7.5 | 4 | 1.1 |
| W11S-16×2500 | 100 | 12.8 | 16 | 2500 | 270 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16×3200 | 100 | 12.8 | 16 | 3200 | 290 | 150 | 245 | 15 | 5.5 | 1.5 |
| W11S-16×6000 | 190 | 12.8 | 16 | 6000 | 300 | 165 | 270 | 22 | 7.5 | 4 |
| W11S-20×2000 | 100 | 16 | 20 | 2000 | 325 | 165 | 270 | 15 | 5.5 | 1.5 |
| W11S-20×2500 | 130 | 16 | 20 | 2500 | 330 | 180 | 300 | 15 | 5.5 | 1.5 |
| W11S-20×3000 | 160 | 16 | 20 | 3000 | 350 | 180 | 300 | 18.5 | 7.5 | 2.2 |
| W11S-25×2500 | 190 | 20 | 25 | 2500 | 350 | 180 | 300 | 18.5 | 7.5 | 2.2 |
| W11S-30×2500 | 230 | 25 | 30 | 2500 | 410 | 235 | 380 | 30 | 11 | 4 |
| W11S-30×3000 | 380 | 25 | 30 | 3000 | 459 | 250 | 400 | 30 | 11 | 4 |
| W11S-40×2500 | 380 | 35 | 40 | 2500 | 500 | 275 | 460 | 45 | 22 | 5.5 |
| W11S-40×3200 | 430 | 35 | 40 | 3200 | 540 | 290 | 500 | 55 | 22 | 5.5 |
| W11S-50×2500 | 540 | 45 | 50 | 2500 | 590 | 340 | 610 | 45 | 22 | 11 |
Main Components of W11S Hydraulic 3-roller Rolling machine
Cone bending device
Extended shaft for profile bending
Hydraulic drop end position
Solid rolls
Support roller
Main motor
Application Industries
This series of machines can roll metal sheets into cylindrical, arc, sector, cone and other workpieces. It is a general equipment specially used for sheet metal bending, forming, and correction. It is used in shipbuilding, chemical industry, boilers, water and electricity, pressure It has a wide range of applications in various industries of container and machinery manufacturing.
Quality Control
InRyant CNC Tech meets the demands of customers for high-quality products with a strict quality control system.
Our factory has advanced test equipment and a team of excellent mechanical engineers.
We also ensure the stability and traceability of the spare parts, so as to get excellent products with superior quality.
Through strict quality management, the factory controls potential quality risk from the beginning to the finishing of machines.
Packaging and shipment
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging the machine: Avoid all damage that may occur during the delivery. Then we will cover the machine with plastic film tightly to avoid water and rust. The outermost is a wooden box with a fixed template.
FAQ
Q: There are so many machine types, which one should I choose?
A: Please communicate with us via inquiry or email, we can guide you.
Q: This is my first time buying your machine; I have no ideas about your machine’s quality?
A: Each machine is strictly produced based on standard certifications. We are confident to tell customers that there is no need to worry about our quality. Welcome you visit our factory anytime
Q: When I got this machine, but I don’t know how to use it. What should I do?
A: There are video and English manuals with the machine. If you still have any doubts, we can talk by telephone. we supply 24 hours online service.
Q: If some problems happen to this machine during the warranty period, what should I do?
A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service.
Q: Machine delivery time?
A: Within 20-30 working days after get your payment.
