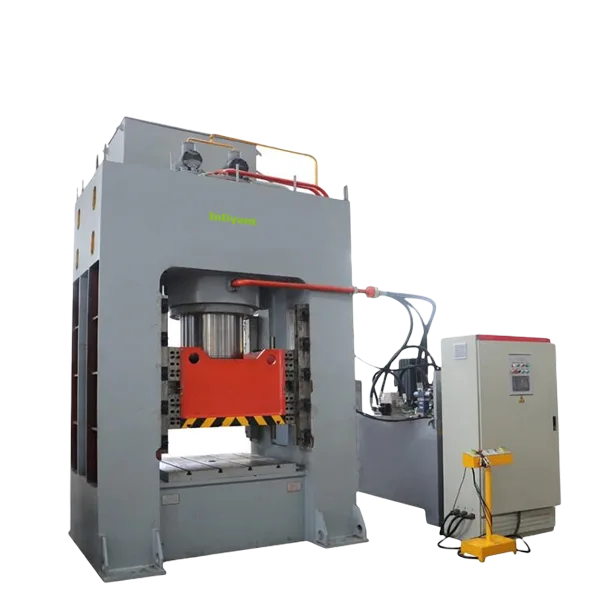

Y32 Series Anti-theft door embossing hydraulic press
- Good system rigidity and high precision
- High life and high reliability
- Heavy-duty machine body design

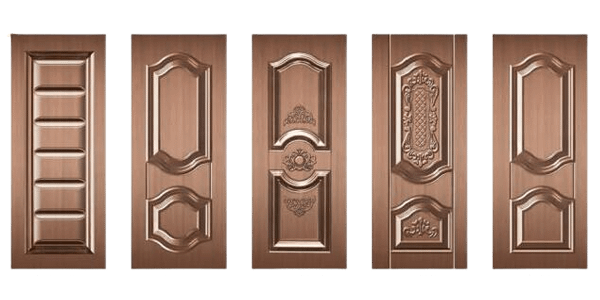

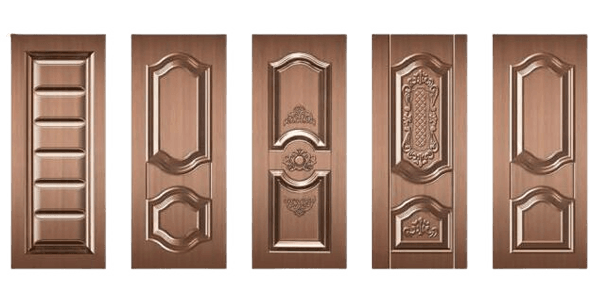

This machine is mainly suitable for metal door embossing. The equipment has good system rigidity and high precision, high life and high reliability. The embossing process for sheet metal parts meets 3 shifts/day production.
Machines Capacity: 1500t – 4000t
Y32 Series Anti-theft door embossing hydraulic press features
1. The press machine can be operated in 4 modes: adjustment (Inching), manual, semi-automatic and full-automatic, the working mode also can be divided into 2 modes: constant-distance forming and constant-pressure forming
2. Constant-distance mode: When the current positions of slide and cushion reach a preset position, the current work is stopped. The constant-distance value of the slides is within the range of slide full stroke.
3. Constant-pressure mode: When the current pressures of the slide and cushion reach a preset pressure, the current work is stopped.
4. Adjustment(inching): Operate corresponding functional buttons to complete corresponding actions. Pressing a button for one time makes the press machine complete a one-time inching. The press machine is stopped when the button is released. This mode is mainly used to adjust the press machine and replace a die.
5. Manual: Push each function button to complete a matching action, each push completes one action at a time.
6. Semi-automatic: Double-hand push button to complete a single cycle: When a double-hand button is pressed, the press machine completes a set of process actions (Cycle process should be preset )
Y32 Series Anti-theft door embossing hydraulic press Technical Specification
| Name | Unit | Value | Value | Value | Value | |
| Model | 4000T | 3600T | 2500T | 1500T | ||
| Main cylinder force | KN | 40000 | 36000 | 25000 | 15000 | |
| Daylight | mm | 500 | 500 | 500 | 500 | |
| Main cylinder Stroke | mm | 400 | 400 | 400 | 400 | |
| Cylinder Qty. | / | 6 | 6 | 6 | 6 | |
| Table size | LR | mm | 1600 | 1600 | 1400 | 1400 |
| FB | mm | 2600 | 2600 | 2400 | 2400 | |
| Slider speed | Down | mm/s | 80-120 | 80-120 | 80-120 | 80-120 |
| Return | mm/s | 100 | 100 | 100 | 100 | |
| Working | mm/s | 10-15 | 10-15 | 10-15 | 10-15 | |
Main Components of Y32 Series Anti-theft door embossing hydraulic press
Siemens HMI
Siemens PLC
YASKAWA Servo Driver
Servo Motor
Safety Valve
Oil level
Oil temperature Warning
electrical part
High-quality Shaft Coupling
Safety blocks
Lock nuts
Electromagnetic Valve – Solenoid Valves
Pillars
Piston
Application Industries

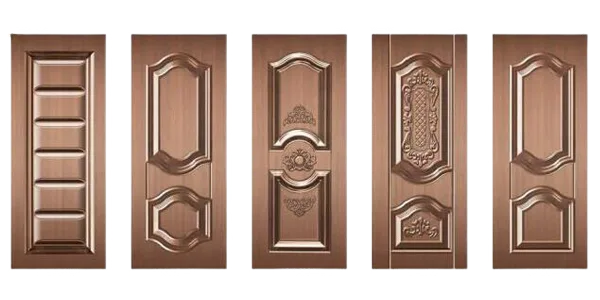

This machine is mainly suitable for metal door embossing. The equipment has good system rigidity and high precision, high life and high reliability. The embossing process for sheet metal parts meets 3 shifts/day production.
Quality Control
InRyant CNC Tech meets the demands of customers for high-quality products with a strict quality control system.
Our factory has advanced test equipment and a team of excellent mechanical engineers.
We also ensure the stability and traceability of the spare parts, so as to get excellent products with superior quality.
Through strict quality management, the factory controls potential quality risk from the beginning to the finishing of machines.
Packaging and shipment
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging the machine: Avoid all damage that may occur during the delivery. Then we will cover the machine with plastic film tightly to avoid water and rust. The outermost is a wooden box with a fixed template.
FAQ
Q: There are so many machine types, which one should I choose?
A: Please communicate with us via inquiry or email, we can guide you.
Q: This is my first time buying your machine; I have no ideas about your machine’s quality?
A: Each machine is strictly produced based on standard certifications. We are confident to tell customers that there is no need to worry about our quality. Welcome you visit our factory anytime
Q: When I got this machine, but I don’t know how to use it. What should I do?
A: There are video and English manuals with the machine. If you still have any doubts, we can talk by telephone. we supply 24 hours online service.
Q: If some problems happen to this machine during the warranty period, what should I do?
A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service.
Q: Machine delivery time?
A: Within 20-30 working days after get your payment.
