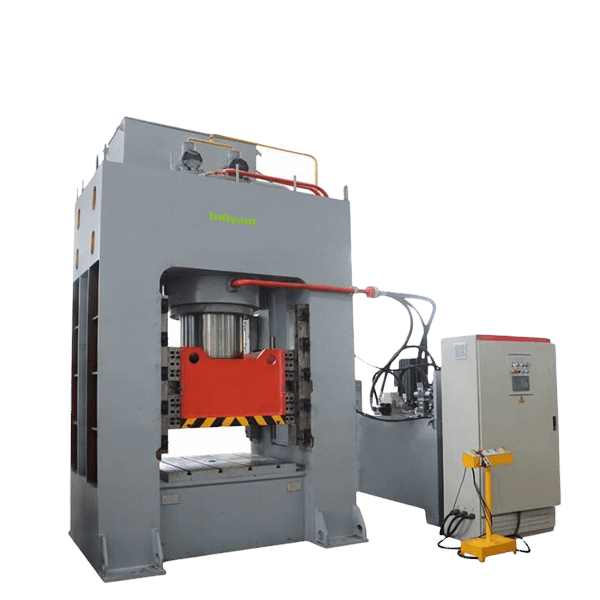

Y71 Series Composite SMC hydraulic press
- Environmentally friendly, low noise and easy maintenance
- Slow speed pressure forming, reasonable reserved exhaust time
- The quick response of system, numerical control system
Y71 Series Composite SMC BMC Hydraulic Press also called hydraulic composites molding press, is applied in compression molding of composites material such as SMC, BMC, FRP, GRP and so on.
Machines Capacity: 1000t – 4000t
Y71 Series Composite SMC hydraulic press machine features
- It is mainly used for the integral forming of thermosetting (FRP) plastics and thermoplastic products. Suitable for the forming of SMC, BMC, DMC, GMT and other bulks and sheets.
- Hydraulic system is installed on the top with maintenance platform, environmentally friendly, low noise and easy maintenance.
- Multiple-stage slow speed pressure forming, reasonable reserved exhaust time.
- With the function of high-pressure slow opening mold, suitable for high products.
- The quick response of system, numerical control system.
Y71 Series Composite SMC hydraulic press Technical Specification
| Item | Unit | Y71-4000T | Y71-3000T | Y71-2500T | Y71-2000T | Y71-1500T | Y71-1000T |
| Pressure | kN | 40000 | 30000 | 25000 | 20000 | 15000 | 10000 |
| Max. liquid pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Daylight | Mm | 3500 | 3200 | 3000 | 2800 | 2800 | 2600 |
| Stroke | Mm | 3000 | 2600 | 2400 | 2200 | 2200 | 2000 |
| Working table size | Mm | 4000×3000 | 3500×2800 | 3400*2800 | 3400*2600 | 3400*2600 | 3400*2600 |
| Height above the ground | Mm | 12500 | 11800 | 11000 | 9000 | 8000 | 7200 |
| Foundation depth | mm | 2200 | 2000 | 1800 | 1600 | 1500 | 1400 |
| Down speed | Mm/s | 300 | 300 | 300 | 300 | 300 | 300 |
| Working speed | Mm/s | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
| Return speed | Mm/s | 150 | 150 | 150 | 150 | 150 | 150 |
| Total Power | kW | 175 | 130 | 120 | 100 | 90 | 60 |
Main Components of Y71 Series Composite SMC hydraulic press
Siemens HMI
Siemens PLC
YASKAWA Servo Driver
Servo Motor
Safety Valve
Oil level
Oil temperature Warning
electrical part
High-quality Shaft Coupling
Safety blocks
Lock nuts
Electromagnetic Valve – Solenoid Valves
Pillars
Piston
Application Industries
Our hydraulic press machines are suitable for composite material moulding:
SMC (Sheet Moulding Compound) components
BMC (Bulk Moulding Compound) components
RTM (Resin Transfer Moulding) components
Different systems are used, depending on the component requirements and the production process. The result: Best parts quality and maximum production reliability – for greater economic efficiency and maximum productivity.
Quality Control
InRyant CNC Tech meets the demands of customers for high-quality products with a strict quality control system.
Our factory has advanced test equipment and a team of excellent mechanical engineers.
We also ensure the stability and traceability of the spare parts, so as to get excellent products with superior quality.
Through strict quality management, the factory controls potential quality risk from the beginning to the finishing of machines.
Packaging and shipment
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging the machine: Avoid all damage that may occur during the delivery. Then we will cover the machine with plastic film tightly to avoid water and rust. The outermost is a wooden box with a fixed template.
FAQ
Q: There are so many machine types, which one should I choose?
A: Please communicate with us via inquiry or email, we can guide you.
Q: This is my first time buying your machine; I have no ideas about your machine’s quality?
A: Each machine is strictly produced based on standard certifications. We are confident to tell customers that there is no need to worry about our quality. Welcome you visit our factory anytime
Q: When I got this machine, but I don’t know how to use it. What should I do?
A: There are video and English manuals with the machine. If you still have any doubts, we can talk by telephone. we supply 24 hours online service.
Q: If some problems happen to this machine during the warranty period, what should I do?
A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service.
Q: Machine delivery time?
A: Within 20-30 working days after get your payment.
